Quality Perforated Uni Strut Channel Manufacturers

Product Description

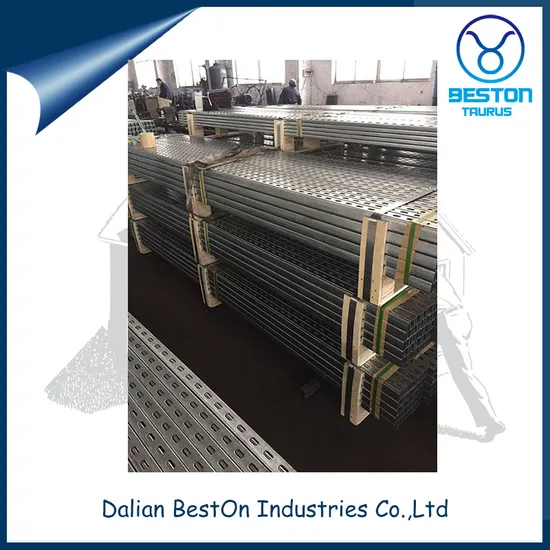

quality perforated Uni Strut Channel manufacturers
High quality & reasonable Price, no need w
High quality & reasonable Price, no need welding and punching, can use repeatedly, wide usage range, flexible for installation.

? Standard thickness: 1.0mm, 1.5mm, 2mm, 2.5mm,2.75mm, 3mm
? Standard length: 2440mm, 3000mm, 5800mm, 6000mm
? Standard size: 41*21, 41*25, 41*41,41*62,41*72,41*82

No.	Size(mm)	Size(inch)	Thickness(mm)	Thcikness(Gage)	Type	Surface Finish
1	21x10	13/16x13/32"	1.0, 1.5,2.0,2.5,2.75,3.0	19,16,14,12	Slotted, Solid	HDG,PG,SS,Al,PC
2	21x21	13/16x13/16"	1.0, 1.5,2.0,2.5,2.75,3.0	19,16,14,12	Slotted, Solid	HDG,PG,SS,Al,PC
3	41x21	1-5/8x13/16"	1.0, 1.5,2.0,2.5,2.75,3.0	19,16,14,12	Slotted, Solid	HDG,PG,SS,Al,PC
4	41x22	1-5/8x7/8"	1.0, 1.5,2.0,2.5,2.75,3.0	19,16,14,12	Slotted, Solid	HDG,PG,SS,Al,PC
5	41x25	1-5/8x1"	1.0, 1.5,2.0,2.5,2.75,3.0	19,16,14,12	Slotted, Solid	HDG,PG,SS,Al,PC
6	41x41	1-5/8x1-5/8"	1.0, 1.5,2.0,2.5,2.75,3.0	19,16,14,12	Slotted, Solid	HDG,PG,SS,Al,PC
7	41x62	1-5/8x2-7/16"	1.0, 1.5,2.0,2.5,2.75,3.0	19,16,14,12	Slotted, Solid	HDG,PG,SS,Al,PC
8	41x83	1-5/8x3-1/4"	1.0, 1.5,2.0,2.5,2.75,3.0	19,16,14,12	Slotted, Solid	HDG,PG,SS,Al,PC
	''''''	'''''''''	'''''''''	'''''''	'''''	''''''''

Strut Channel System Advantages:
High strength to ocst ratio
Completely adjustable
No welding or drilling required
Strut is re-usable
One-inventory adaptable to many jobs
Saw and wrench are the only tools needed
Strut Channel Surface Finish:
Powder coated- BS-6497-1984, between 60 and 85 microns thick
Hot Dipped Galvanized-for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Acid Washing or Electrolytic Polishing- for stainless cable basket tray use
