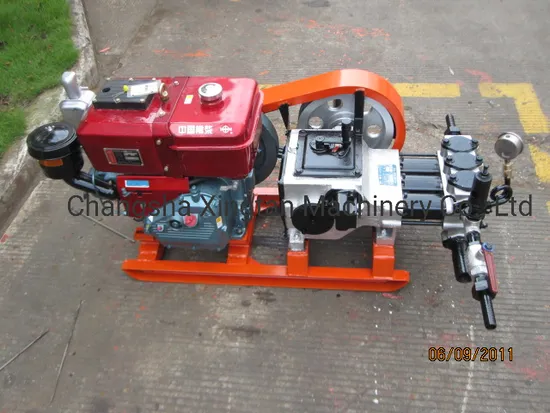

Bw-160 Slurry Three Cylinder Mud Pump Piston Pump

Product Description

Product Description BW-160 Mud Pump is a kind of horizontal triplex-cylinder single-acting reciprocating piston pump, which is used to feed the washing fluid into the drilling hole during the core drilling. Any slurry or fresh water to be pumped by the slurry pump shall not contain any chemical impurities corroding the metal and rubber parts of the Pump. It is characterized by an even run-off, small fluctuation of pressure and 2-gear shifting structure in the pump, with two displacements and two pump pressures achieved. It adopts the aluminum alloy shell. Due to its small dimension, light weight and good disassembly, it is convenient to be carried or handled in mountainous areas.
Users shall pay attention to the actual configuration because there may be a somewhat difference from the said contents in this Instruction due to the constant improvement of this product.
Product Parameters

Type	Horizontal three-cylinder single-acting reciprocal piston pump
Liner Dia	65mm
Stroke	70mm
Gear Speed	I	II
Reciprocate Times(/minute)	245	190
Displacement(L/min)	160	120
Pressure(Mpa)	1.5	2.0
Power	5.88KW
Suction Pipe Dia	φ51mm
Discharge Pipe Dia	φ25mm
Triangular section belt	(B×3)310mm
Input Speed	754r/min
Engine
	Diesel Engine	Electro-Motor
Type	CHANGCHAI R185A(Water Cooling)	Y132S-4-B3
Rated Power	5.88KW	5.5KW
Speed(rpm)	2200r/min	1440 r/min
Weight	200kg
Dimension	1200×550×580mm
