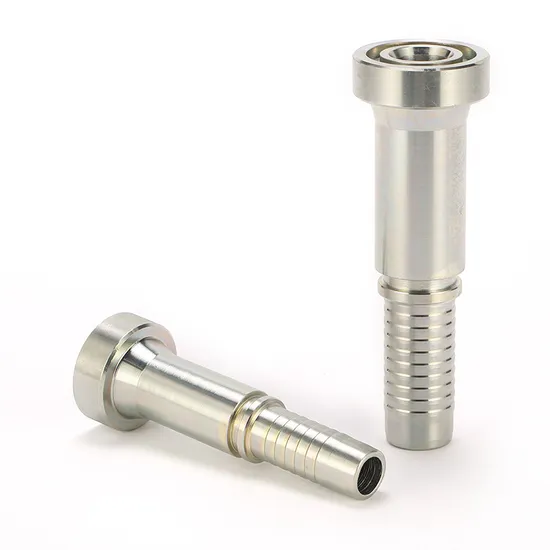

SAE Flange 9000 Psi Straight Hydraulic Fitting

Product Description

1) Material: 20# carbon steel
2) Different sizes available
3) Zinc plated
4) ISO9001: 2008

PART NO.	FLANGE SIZE	HOSE BORE (DN)	HOSE BORE (DASH)	DIMENSIONS (A)	DIMENSIONS (C)	DIMENSIONS (D)	DIMENSIONS (L)	CLICK
P87912-12-12	3/4"	20	12	57.8	41.3	31.7	14.3
P87912-16-12	1"	20	12	62.3	47.6	38	14.3
P87912-16-16	1"	25	16	63	47.6	38	14.3
P87912-20-16	1.1/4"	25	16	70	54	43	14.3
P87912-20-20	1.1/4"	32	20	71.5	54	43	14.3
P87912-24-20	1.1/2"	32	20	77	63.5	50.8	14.3
P87912-24-24	1.1/2"	40	24	77	63.5	50.8	14.3

PEHEL is an ISO9001 and UKAS certified company and member of China Hydraulic and Pneumatic Seal Element Industrial Association.PEHEL is also a trustworthy unit in quality of product approved by the Technical Supervising Bureau.
PEHEL, equipped with advanced CNC machines and professional technicians, can design, develop and produce hydraulic controlling components and full sets of accessories all by itself.

---
