Basic Info.
Certification
FCC, CE, RoHS
Detection Principle
Catalytic/Electrochemical/Semiconductor/Infrared
Measurable Gas
Combustible Gas/Toxic Gas
Working Environment
Temperature(-40~55)ºC
Feature
LED Digital Display
Customized Support
OEM, ODM
Product Size
183*143*107mm (Display Type)
Advantage
Provide 4-20mA or RS485 Protocol Output
Product Name

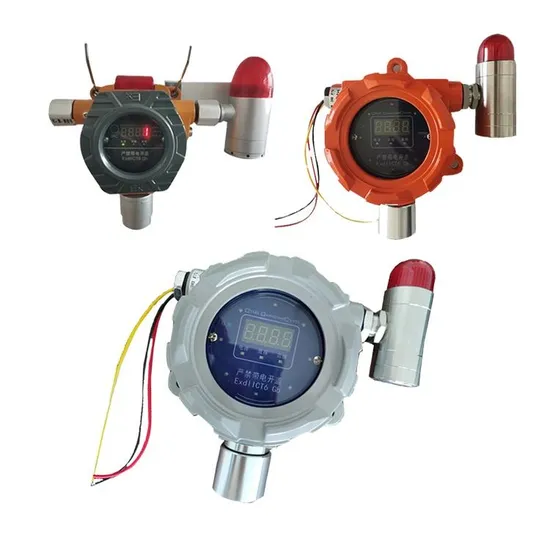

Remote Stand Alone Fixed Gas Leak Detector
Transport Package
Single-Piece Supporting Professional
Specification
7.5*7.6*5.7
Production Capacity
10000 Set/Sets Per Month
Product Description
Product Parameters
Measurable gas | combustible gas, toxic and harmful gas |
Product Size | 183*143*107mm (Display type 183*43*92mm No display type) |
Sampling | Natural diffusion |
Battery | DC24V/36V±10% |
Ambient temperature | Temperature -40~70 |
Power | 12-30V DC |
Output signal (The user can decide as follows according to actual needs) | a. Standard three-wire 4-20mA analog signal output b.Two-wire 4-20mA analog signal output (optional) c. Relay switch output (optional) d. RS485 bus output (optional) |
Wiring method | M20*1.5mm (metric) |
Explosion proof mark | Exd IIC T6 Gb |
Working temperature | 10~55 |
Battery | DC24V/36V±10% |
Alarm method | Light/sound |
Products Description Optional 6 Styles to Choose: Styles, colors, designs or gases could be customized Detailed Images LED/LCD display + infrared sound and light alarm function Sensitive sensing a. Standard three-wire 4-20mA analog signal output b. Two-wire 4-20mA analog signal output (optional) c. Relay switch output (optional) d. RS485 bus output (optional) Online (also called wired), provide 4-20mA or RS485 protocol output, support DCS, SIS, GDS data upload Explosion-proof, anti-corrosion, dust-proof Explosion proof mark: Exd IIC T6 Gb NOTICE: NKYF specializes in the production of various types of gas detectors. If you are not sure which product to choose and what scenario is suitable for use, please feel free to contact us for free professional advice Except belowing normal gases, other gases and measuring ranges are all support customized, please click to contact us for more details
Measured gas | Measuring range | Selectable range | Resolution |
Combustible Ex | 0-100%LEL | 0-100%VOL | 1%LEL/1%VOL |
Oxygen O2 | 0-30%VOL | 0-30%0-100%VOL | 0.1%VOL |
Hydrogen Sulfide H2S | 0-100PPM | 0-502001000PPM | 0.1/1PPM |
carbon monoxide CO | 0-1000PPM | 0-500/2000/5000PPM | 0.1/1PPM |
nitrogen dioxide NO2 | 0-20PPM | 0-501000PPM | 0.1/1PPM |
natural gas | 0-100%LEL | 0-100%LEL | 1%LEL |
Nitrogen oxides | 0-20PPM | 0-501000PPM | 0.1/1PPM |
Methane CH4 | 0-100%LEL | 0-100%LEL | 1%LEL/1%VOL |
carbon dioxide CO2 | 0-5000PPM | 0-1%5%10%VOL | 1PPM/0.01%VOL |
Nitric oxide NO | 0-250PPM | 0-5001000PPM | 1PPM |
nitrogen N2 | 0-100%LEL | 0-100%VOL | 1%VOL |
Alcohol | 0-100%LEL | 0-100%LEL | 1%LEL/1%VOL |
Sulphur dioxide SO2 | 0-20PPM | 0-501000PPM | 0.1/1PPM |
Chlorine CL2 | 0-20PPM | 0-10100PPM | 0.1PPM |
Dichlorosilane | 0-20PPM | 0-20100PPM | 1PPM/0.1PPM |
Ammonia NH3 | 0-100PPM | 0-505001000PPM | 0.1/1PPM |
Silicon tetrachloride | 0-20PPM | 0-20100PPM | 1PPM/0.1PPM |
Hydrogen H2 | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM |
Phosphine PH3 | 0-20PPM | 0-200-100PPM | 0.01/0.1PPM |
Hydrogen chloride HCl | 0-20PPM | 0-2050100PPM | 0.01/0.1PPM |
Acrylonitrile | 0-100PPM | 0-100PPM | 1PPM/0.1PPM |
TVOC | 0-100PPM | 0-100PPM | 1PPM/0.1PPM |
CLO2 | 0-50PPM | 0-10100PPM | 0.1PPM |
Hydrogen cyanide HCN | 0-50PPM | 0-100PPM | 0.1/0.01PPM |
Ethylene oxide ETO | 0-10PPM | 0-100PPM | 1PPM/0.1PPM |
Ozone O3 | 0-10PPM | 0-20100PPM | 0.011PPM/0.1PPM |
Formaldehyde CH2O | 0-20PPM | 0-50100PPM | 1/0.1PPM |
Fluorine gas F2 | 0-10PPM | 0-110PPM | 1PPM/0.1PPM |
Hydrogen fluoride HF | 0-10PPM | 0-11050100PPM | 0.01/0.1PPM |
Xylene, Toluene | 0-20PPM | 0-51050100PPM | 0.01/0.1PPM |
malodor | 0-100PPM | 0-100PPM | 1PPM/0.1PPM |
Product Package Product Size:183*143*107mm (Display type 183*43*92mm No display type) Box Dimension:21*21*12cm Gross weight:1.8KG
Delivery time:7-10 days
We support customized packaging and single-piece samples, as per customer demand Company Profile
>>
