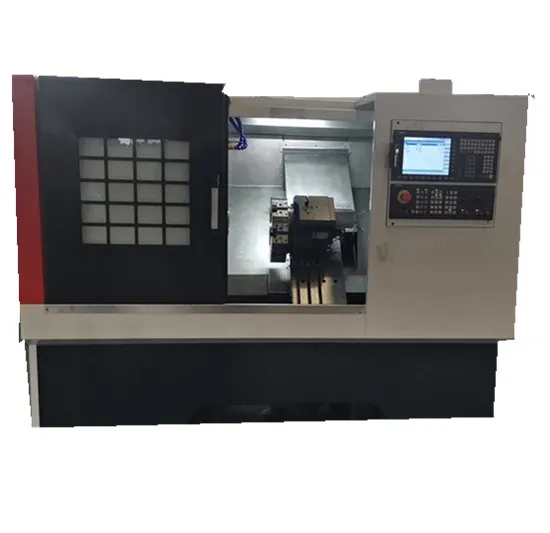

Chinese Factory High Accuracy Slant Bed CNC Machine Tool Tck46A

Product Description

Product Description
CNC Lathe Application The Hot Sale Small CNC Turning Center Slant Bed cnc Lathe TCK46A is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace, other industries on the rotary parts for efficient, high-volume, high-precision processing. Processing accuracy can reach 7 level. CNC Lathe Features
Hot Sale Small CNC Turning Center Slant Bed cnc Lathe TCK46A 1.45 degree slant bed cnc lathe 2.High accuracy Taiwan linear guideways 3.Chip conveying capacity is large and convenient ,customer could choose chip conveying in the right or in the back 4.Spindle unit has two types ,the heavy duty cutting type and the high speed type. 5.The first one is suitable for bearing and gear processing . 6.The second type is suitable for high speed and jhigh precision processing. 7.Customers could choose any type of them 8.Screw pre-stretching structure 9.Gang type tool post 10.Optional turret
CNC Lathe Technical Parameter:

Specification	Units	TCK46A
Max.swing over bed	mm	460
Max.swing over cross slide	mm	260
Max.turning length	mm	350
Max.bar capacity	mm	Ø45
Max.processing diameter of plate type work piece	mm	400/320
Spindle nose(optinal chuck)		A2-5
Spindle motor power	kw	7.5
Max.spindle speed	rpm	3500
Spindle bore	mm	Ø56
X/Z axis rapid traverse	m/min	24
X axis limit Travel	mm	240
Z axis limit Travel	mm	400
X axis motor torque	N.m	7.5
Z axis motor torque	N.m	7.5
X/Z axis repeatability	mm	0.003
Tailstock bore	mm	70
Tailstock quill travel	mm	80
Total power	kw	11
Tailstock taper		MT5
Machine dimensions(L*W*H)	mm	2500*1700*1890
Weight	kg	3000

CNC Lathe Details Picture:
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: We can make the deal on made-in-china online platform, you can pay by T/T . You can also pay to my company business bank account.
5.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
