Basic Info.
Type
Special Purpose Grinding Machine
Automatic Grade
Automatic
Cylindrical Grinder Type
Saw
Blade Diameter
Ø110~Ø305mm
Range of Tooth Pitch
7~48mm
Applicable Tooth Thickness
≤3.5mm
Grinding Wheel Swing Angle
-15°~15°
Grinding Wheel Specifications
Ø125mm
Grinding Wheel Stroke
0~25mm
Grinding Wheel Speed
5600r/Min
Working Air Pressure
≥0.45MPa
Supply Voltage
AC380V50Hz
Transport Package
Wooden Crate
Specification
1540× 1042× 1770mm
Production Capacity
30 Set/Year
Packaging & Delivery
Package Size
158.00cm * 108.00cm * 182.00cm
Package Gross Weight
740.000kg
Product Description
Machine features

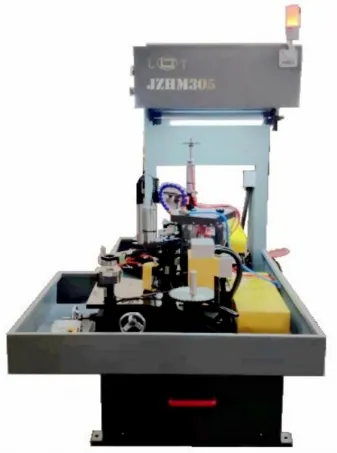

1.This machine is a specialized automated equipment for grinding the rear corner of alloy circular saw blades.
2.The use of manipulator up and down saw blade, simple and convenient operation, one person can operate multiple equipment.
3.Common tooth profiles can be ground in one go, with left and right teeth, left and right flat, left and right left, right and right left, and special tooth profiles can be set arbitrarily.
4.The left and right teeth have been optimized and adjusted for easy operation. The left teeth have been completely ground before the right teeth, reducing the number of grinding head swings.
5.The grinding wheel has an automatic compensation function, which automatically compensates for the wear of the grinding wheel, ensuring the consistency of tooth height difference and improving product accuracy.
6.The feed adopts an inclined iron pushing method to improve machining accuracy.
Technical parameter
| Blade Diameter | Ø110~Ø305 | mm |
| Range of tooth pitch | 7~48 | mm |
| Applicable tooth thickness | ≤3.5 | mm |
| Rear angle | 0°~30° | ° |
| Grinding wheel swing angle | -15°~15° | ° |
| Grinding wheel specifications | Ø125×Ø20 | mm |
| Grinding wheel stroke | 0~25mm | mm |
| Grinding wheel speed | 5600 | r/min |
| Working air pressure | ≥0.45 | MPa |
| Supply voltage | AC380V50Hz | V |
| Power | 2.2 | KW |
| Weight | 720 | Kg |
| Machine tool dimensions | 1540×1042×1770 | mm |
>>
