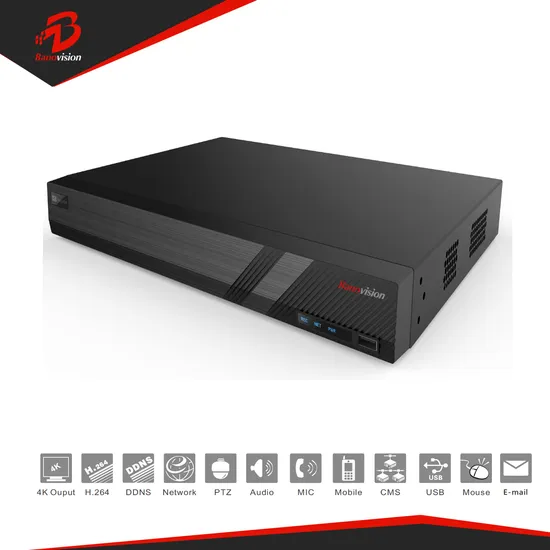

Banovision Security 5MP Surveillance Hybrid Ahd+Tvi+Cvi 8CH Security Digital Video Recorder Xvr DVR

Product Description

Features
• 8 CH TVI / CVI / AHD video input
• 8 CH 5MP / 4MP / 4MP lite / 3MP / 1080P / 720P / WD1 recording
• 4 CH IPC 4MP / 3MP / 1080P / 960P / 720P recording
• Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
• Multi-mode recording: manual / timer / motion / sensor
• Playback : 8 CH simultaneously playback
• Search: time slice, time, event ( manual, sensor, motion ), tag search
• Express and flexible backup via USB, network and so on
• Pentaplex: preview, record, playback, backup and remote access
• DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
• Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
• Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
• Multi-user online simultaneously
• Authorization management, log review and device status review
• HDMI 4K output, true high resolution display
• Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
• Support NAT function and QRCode scanning by mobile phone and PAD
• Powerful smart phone & Pad surveillance with iOS and Andriod OS

Specification

Model		BA-1D5104
System	Compression	Standard H.264 High Profile
	CPU	Cortex A9
	OS	Embedded Linux
Video	Input	BNC × 8
	Resolution	TVI / AHD: 5MP@20fps; 4MP, 3MP, 1080P , 720P , WD1 real time CVI : 1080P, 720P real time
	IP Input / Access Bandwidth	IPC 4 / 24Mbps
	Output	HDMI × 1: 4K × 2K, 1920 × 1080, 1280 × 1024 VGA × 1: 1920 × 1080, 1280 × 1024 BNC × 1: CVBS ( used as spot output )
Audio	Input	RCA × 1
	Output	RCA × 1
	Two-way audio	Take up channel one audio input
Record	Resolution	5MP, 4MP, 4MP lite, 3MP,1080P, 720P, WD1
	Frame Rate	5MP: 10fps (PAL / NTSC) 4MP/ 3MP: 12 fps (PAL) / 15 fps (NTSC) 4MP lite/1080P/720P/WD1: 25 fps (PAL) /30 fps (NTSC)
	Bit Rate	768Kbps ~ 8Mbps
	Mode	Manual, timer, motion, sensor
IP Input	Resolution	4MP / 3MP / 1080P / 960P / 720P
	Frame Rate	25fps (PAL) / 30fps ( NTSC )
Playback	Playback	8 CH
	Search	Time slice / time / event / tag search
	Smart Search	Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
	Function	Play, pause, FF, FB, digital zoom, etc.
Alarm	Mode	Manual, sensor, motion, exception
	Input	NO
	Output	NO
	Triggering	Record, snap, preset, e-mail, etc.
Network	Interface	RJ45 10 / 100Mbps × 1
	Protocol	TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
	Web Client	Multiple users online
Mobile Device	OS	iOS, Andriod
Storage	HDD	SATA × 2, max 8T per HDD
Backup	Local Backup	U disk, USB mobile HDD
	Network Backup	Yes
Port	RS485	RS485 × 1, connect to PTZ or keyboard
	USB	USB 2.0 × 1 ( front panel ), USB 3.0 × 1 ( rear panel )
	Remote Controller	Yes
Others	Power Supply	DC12V
	Consumption	≤ 10W ( without HDD )
	Dimensions ( mm )	380 × 268 × 52 ( W × D × H )
	Work Environment	-10 ~ 50 ºC,10% ~ 90% humidity

---
