Basic Customization Heavy Duty Engine Industrial Workshop CNC Lathe Machine

Product Description

High efficiency for processing national standard and non-standard motor housing CNC vertical lathe
Product Description
Suitable for: This machine tool is suitable for the short axis and the disk type parts processing
Feature

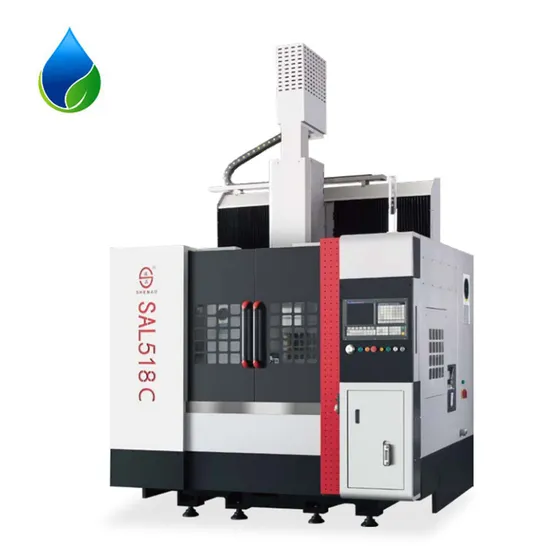

SAL518C CNC vertical lathe is designed with special hydraulic jigs and fifixtures for machining (160-225) national standard and non-standard motor cases. It greatly improves the processing effiffifficiency and reduces the labour intensity of workers. Moreover, it can realise the machining of the upper and lower plane of the motor casing, the stop, and the iron core in one cut (divided into rough and fifine turning). There is a great improvement on the precision and noise of the motor assembly in the later stage. The electrical components in the electrical cabinet adopt Schneider brand, and the special cooling air-conditioner for the electrical cabinet is used for cooling and dehumidifification, so that the machine tool has a safe, stable and reliable power control system.
Product Parameters

Machining feed method	Moving form	Bolster
	Guideway form	X-axis line rail, z-axis (ram) hard rail
Machining capacity	Maximum rotary diameter mm	800
	Max. Turning diameter /mm	800
	Maximum turning height mm	550
	Maximum boring height /mm	550
	Maximum distance from ram carriage to disc /mm	625
Stroke	X-axis mm	930(-260mm/440mm)
	Z-axis(ram) mm	650
Feed	X-axis fast v m/min	16
	Z-axis fast v m/min	8
Spindle	Spindle end form	A2-11
	RPM r/min	80-200
	Spindle radial runout mm	0.008
Factory accuracy	GNSS	(X)±0.009 (Z) ±0.010
	Repeatability	X) ±0.004 (Z) ±0.005
	Minimum positioning unit	0.001
Tooling and tool holders	Special tooling	160-250 machine tooling
	Disc (optional)	Φ800
	tool holder	2-station ram
Control systems	X servo motor	18NM/2000RPM
	Z (ram) servo motor (holding brake)	18NM/2000RPM
	three-phase asynchronous motor	7.5KW / 490RPM
	Display	Chinese display
	Transmission interface	USB
Power requirements	V V	380
	AT	5~38°
	AH	<85
	Hydraulic pump station	1.5KW/50Hz-50L
Specifification	WT KG	7500
	SIZE mm	2240x1865x3750
Other	Standard
	Optional	Special fifixtures/chip conveyor for motor casing
	Type of chip conveyor	Chain plate type

Detailed Photos
hot selling product

Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.

---
