Beol Semiconductor Device Wafer Fabrication Fab ID Slice Machine / Inner Circle Slicer for Semiconductor Crystal Gemstone

Product Description

Product Description

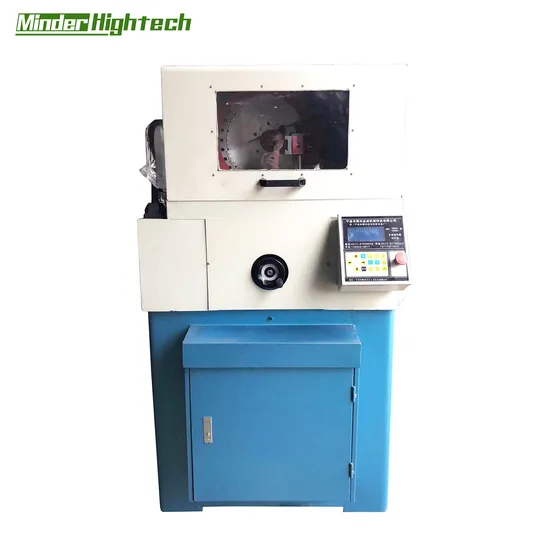

MD5060 is fully automatic slice machine which is used in slicing semiconductor, crystal,gemstone, ceramics, graphite, samarium cobalt, ND-Fe-B magnetic materials and other hard brittle materials. The round inner-blade diamond blade mounted on the spindle cutter is operated at high speed, and the table is controlled by the computer to move horizontally and vertically, and the material on the fixture is cut into the required product. A worker can operate about 30 units at the same time.
Application
Magnetic materials (NdFeB, SmCo, ferrite, niobium, etc.), optical glass, crystal, semiconductor, graphite, ceramic, silicon wafer, gemstone and other hard brittle materials
Technical parameters

Maximum processing size (mm)		Φ60 * 80 mm
Cutting speed (cm2/mm)		3-6 ((cm2/mm))
Sliced sheet balance deviation (mm)		±0.005mm
Cutting slice thickness (mm)		≥0.30
Tolerance range (mm) of slices		±0.01mm
Lateral stroke (mm)		120mm
Longitudinal stroke (mm)		100mm, longitudinal indexing range 0-100 grid, 0.01 per grid, 2mm per revolution
Spindle electromechanical		3-phase 0.75kw
Spindle speed (r/min)		3000rpm
Work fixture adjustment	Horizontal angle	±45º
	Pitch angle	±10º
	Vertical lift (mm)	24
Cooling box volume (kg)		50kg
Cooling box motor		3-phase 0.12kw 2780r/min
Power supply		3-phase four-wire 50Hz 380V
Dimension		1050*730*1400mm
Weight		800kg

We have many types of machines, such as ID slice machine(Inner circle slicer, inside diameter slicer, ID saw), Automatic square grinding machine, semi-auto square grinding machine

---
