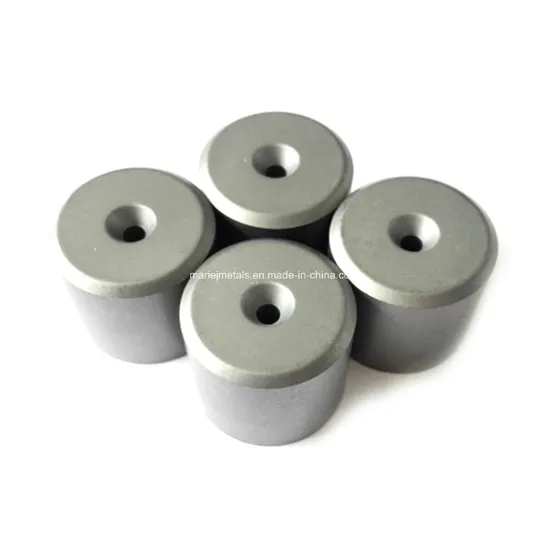

Tungsten Carbide Stranding Wire Dies

Product Description

Tungsten Carbide Stranding Wire Dies

hole diameter(mm)	tolerance(μm)	Die sleeve
		A	B
φ0.020~0.070	0.5	25	5
φ0.071~0.200	1	25	8
φ0.201~0.400	1	25	8
Φ0.401~0.600	1	25	10
Φ0.601~1.000	2	25	10
more than 1.000	3	30	15
Name Wire materials		Flexile wire	Hard wire
Inlet area		70°+/-20°	60°+/-20°
Lubrication area		35°+/-20°	30°+/-5°
Compression area		16°+/-2°	14°+/-2°
Sizing area		20-50	40-80
Safety angle		15°+/-5°	15°+/-5°
Outlet area		50°+/-20°	50+/-20°

Packaging & Shipping
Shipment: by Express/ by Air /by Sea
Arrangeable according to your requests
Our Services
Quality Control
* We will inspect and test all products after finishing production and before delivery.
* We can provide dimension & inspection certificate as customers' requirements.
* We also can provide customers' samples dimensional verification.

1. Customers' requests would be replied within 24 hours.
2. Effective and efficient communications being kept with our customers.

Products we supply and make are:

1. Tungsten carbide products:

Carbide Rods, Carbide Bars, Carbide Strips, Carbide Plates, STB Carbide Blanks, Drawing Dies, Cold Forginng Dies, Carbide Disc Cutters, Carbide Inserts, Carbide Shims, Carbide Burrs and Carbide Burr Blanks, Carbide Mining Bits, Carbide Drilling Bits, Carbide Cutting Tools for Wood and Bamboos, Tile Cutter Wheels, Scriber Tips, Customized Carbide Products etc.

2. Titanium and titanium alloy products:

Titanium Rods, Titanium Tubes, Titanium Pipe Fittings, Titanium Plates, Titanium Sheets, Titanium Foils, Titanium Wires, Titanium Nuts and Bolts, Titanium Brazing and Casting, Cutomized Titanium Products etc.

---
