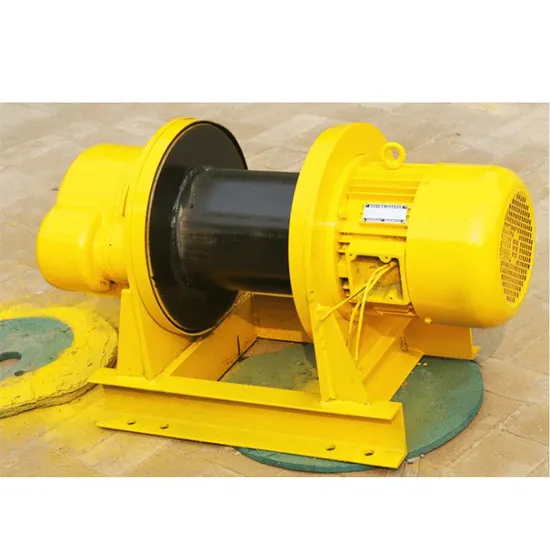

Henan Mine 150m 10t Slow Speed Electric Wire Rope Winch

Product Description

High Quality JM JK Type 8t Electric Winch Wire Rope Hoist Winch
Product Description
JM type slow-speed winches are mainly used for the installation and dismantling of various large and extra-large concrete and steel structures and mechanical equipments, and they can also be used with bridge-gate cranes. Its structure is characterized by orderly arrangement of steel wire ropes, safe and reliable lifting, large rope capacity, etc. It is suitable for the installation of various bridges, harbors, wharves and other road and bridge projects, as well as large-scale plant and mining engineering equipment.
The rated pulling force of JM type slow winch is from 1 ton to 65 tons, and the base working level is M5, which can also be designed according to other working system.
Product Parameters

Model		JM1	JM3	JM5	JM8	JM10
Line pull capacity (kg)		1000	3000	5000	8000	10000
Wire rope average speed (m/min)		15	10	10	8	8
Wire rope Dia.( mm):		9.3	15.5	21.5	26	30
Drum (mm)	Diameter()	190	325	406	500	550
	Length	360	520	840	900	1000
Capacity(m)		110	200	300	300	450
motor	Type	Y112M-6	YZR160M2-6	YZR160L-6	YZR180L-6	YZR200L-6
	Power(kW)	3	7.5	11	15	22
Dimension (cm)		620x701x417	1430x1160x910	1235x1230x805	2090x1475x956	1700x1500x1100
Weight(kg)		270	1100	1560	2900	1800

---
