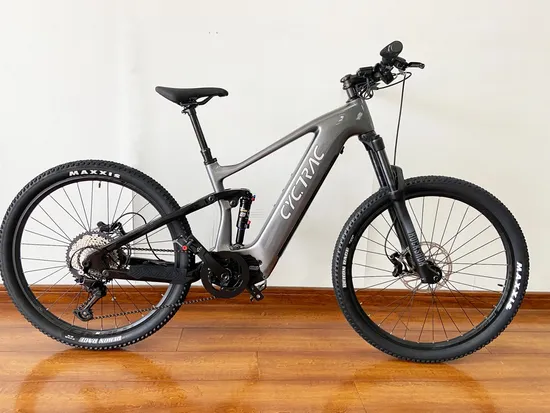

| Bike Model | EB-03 |
| ConfRev | M600+48V15A |
| Frame SizeFork | 29(27.5)×16"(18") |
| Bike Color | DarkGreen / DarkGrayBlack / RedBlack / BlueBlack, HolographicBlack |
| Net Weight | 24.7KG |
| Frame | EM10, AM, High modulus Carbon fiber,Inner cables,Thru-axle12*148 Boost,140mm Travel, DNM rear shox200*55,Gloss+UV laser decals |
| Handelbar Sets | RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80, Clamps 34.9mm |
| Seat post | KS adjustable lifting with hydraulic, Remote,31.6**395*125mm |
| Fork | ROCKSHOX-RECON, Air suspension,150mm,Manual,Thru-axle 15*110 Boost |
| Head Sets | Alu alloy CNC with sealed Bearings 52*52mm |
| Derailleur Lever | SHIMANO DEORE/M6100-12S |
| Rear Derailleur | SHIMANO DEORE/M6100-12S |
| Cranksets | Matching with Mid Motor, 38T |
| Cassettes | SUNSHINE-12S,11-50T |
| Chain | SUMC-12S |
| Brake | RS-LD400, Alu alloy CNC, 4-piston hydraulic disc, with Ceramic heat sink, 203/203mm |
| Hub | RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost |
| Rim | RS, Alu alloy with Double-wall&Rivets, W24×H19mm |
| Spoke | SHUNJIU, Circular 14G |
| Tire | MAXXIS, CROSSMARK, 29/27.5×2.25" |
| Grips | Circular 22.2×120mm, PU leather&locking Ring |
| Saddle | RS, Comfortable and Thickened for MTB |
| Pedals | RS, Alu alloy CNC with Bearings for MTB |
| Motor System | Bafang Mid, M560, Mid, 48V500W |
| Max Torque | 120 N.m (Peak 140N.m) |
| Speed Limit | 25KMh (max 45KMh) |
| Pedal Sensor | Torque+Cadence |
| Battery | Samsung 21700 Li-ion 720Wh, 48V15A |
| Endurance | 130-150KM (pedal assist) |
| Charging Time | 8-9 Hours |
| Charger | 2A, DC2.1 |
| HMI | Bafang, LCD digital, 0-5 Modes |
| Waterproof | IP X5 |
| Max Load | 150 KG |
Company Profile Galaxy Power is a leading professional electric bicycles manufacturer in China, especially over high performance carbon fiber electric mountain bikes.
Our R&D team is made up of engineers specialized in the industry for over 10 years, and have established a great system from R&D, producing management, quality inspection, to customer services, which give us a strong technical capability to ensure the high quality of our product and meet variable demands from different customers, and support OEM, ODM services.
Our plants are delivering over 150,000 units of bikes every year to customers from all over the world .
Our biggest advantage is the whole lifecycle services to our customers which will address your after-sale concerns.
Be our business partner, and you'll have our full support and cooperation.
1. Q: Can I get sample and how long it will take?
A: Yes, we could supply sample for quality check, it will take 7 days to prepare the sample
after payment. 2. Q: Do you support OEM? A: Yes, we support OEM with your own brand, and normally MOQ is 100pcs. 3. Q: What is the payment terms? A:We accept 30% payment by T/T in advance and 70% balance payment by T/T before shipping. Other payment terms can be negotiable. 4. Q:What's shipping methods do you support? A: By sea, air or express, the terms we can accept FOB, CIF, DDP, DDU and so on. 5. Q: How does your factory carry out quality control? A: We attach great importance to quality control.Every part of our products has its own QC.We can take the photos and videos to you.
