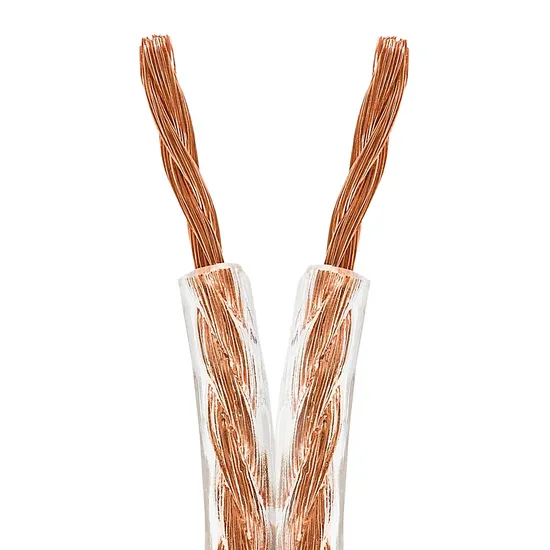

Dbg 2 Core Speaker Cable 0.75mm 6A Speaker Cables

Product Description

Product Description
Speaker Cables Description: These are used as fixed or temporary leads to loudspeakers in mono, stereo, hi-fi and other types of private or public address audio systems and are available with plain, oxygen free or silver plated copper conductors.

Specifications:

Conductor	Type	Area	Insulation	Thickness	Dimensions	DC resistance
Nominal		(mm²)	Material	(mm)	(mm)	(Ω/Km Max)
28/0.25mm	SPOF	1.38	Polythene	0.49	2.80 x 6.10	14.25
40/0.2mm	PCOF	1.25	Polythene	0.4	2.24 x 4.98	15.5
42/0.15mm	PCW	0.75	PVC	0.9	2.98 x 6.46	26.38
76/0.2mm	SPOF	3.74	Polythene	0.74	3.50 x 7.00	5.4
76/0.2mm	PCOF	3.74	Polythene	0.8	4.67 x 9.40	5.25
79/0.2mm	PCOF	2.5	Polythene	0.72	3.50 x 7.00	7.9
79/0.2mm	PCW	2.5	PVC	1	4.01 x 8.20	7.9

SPOF - Silver Plated Oxygen Free
PCOF - Plain Copper Oxygen Free
PCW - Plain Copper
These cables are produced with either a coloured stripe or a polarity rib along one leg for polarity identification.
Please enquire for alternative constructions not shown above.
All dimensions are nominal unless otherwise specified
Bunched conductor constructions are nominal and may vary slightly in the number of strands and/or strand diameter.
