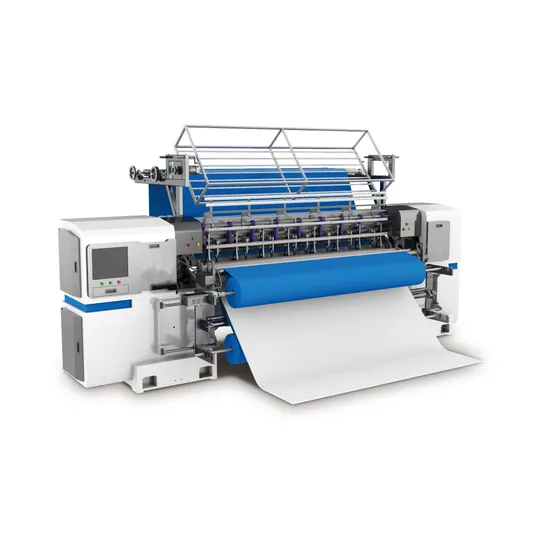

Industrial High Speed Lock Stitch Multi Needle Sewing Machine

Product Description

Specification: Needle row driven by aluminum alloy needle bar frame structure.Oil free,sturdy and durable. Saddle,roller adopts servo drive device ,spindle frequency control. Saddle direction by rail movement,stable operation,flower shape is more accurate, lower breakage. The bottom surface cloth separation bracket and saddle, saddle reduce machine load, feeding smoothly. Adjust speed by computer and the speed can reach 800r/min, the stitch can be set between 2mm-8mm. 360°random quilting and limitless multi-span and independent quilting. Line break automatic stop. Infrared sensor make sure more safety operation. The machine runs smoothly,low noise,high precision, low thread-break rate and easy to operate.

Parameter	KWH-64-2C KWH-64-3C	KWH-96-2C KWH-94-3C	KWH-118-2C KWH-128-3C
Size:L*W*H	3900*1200*1700	5000*1200*1700	6100*1200*1700
Weight	3100kg	4000kg	4800kg
Quilting width	1650	2450	3200
Needle bar space	2C 76.2 3C 152.4	2C 76.2 3C 152.4	2C 76.2 3C 152.4
Needle space	25.4	25.4	25.4
X-axis movement	254	254	254
Quilting thickness	≤50	≤50	≤50
Stitch	2-8	2-8	2-8
Output	0-195m/h	0-195m/h	0-195m/h
Needle type	#16,#19	#16,#19	#16,#19
Rolling speed	500-800r/min	500-800r/min	500-800r/min
Rated voltage(AC)	380V/50HZ	380V/50HZ	380V/50HZ
Power	4.5KW	5.5KW	6.2KW

FAQ:
1.How long does the machine guarantee?
We guarantee one year for non-human damaged factor.
2.After service?
Engineers available to come to your factory for supplying training and installation.
3.How to control the quality?
We have professional Engineer and inspector make sure that each part of machine working well before shipment.
4.How to contact you?
You could contact us via TM, Skype, Whatsapp, Wechat, QQ, Email
5.What about payment term?
T/T, Western Union, Paypal, Cash, L/C, Trade Assurance, etc..
If any other question please don't hesitate to contact us any time..
Notice:
The working speed depends on the working situation,eg, the length of the needles, the kind of cloth,etc.
The Carriage Stroke above is under perfect situation, the real value is limited to the patterns.
After Service:
The machine is guaranteed for one year.
We can arrange engineer to debug and install for customers.
Company Information:

Basic Information
Qinyuan(Jinying) Machinery was formed by Qingdao Qinyuan Mechanical Equipment Co., Ltd, Qingdao Qinyuan Technology Co., Ltd, Nantong Jinying Machinery Co., Ltd,Qingdao Jinying Machinery Co., Ltd,Qingdao Ruidesheng Mechanical Equipment Co., Ltd ,Committed to creating one of the three major brands in the home textile machinery industry.We are a textile machinery manufacturer in China for more than 20 years.We supply all kinds of quilting machine to Chinese famous clothes,bedding product and mattress product manufacturer . Meanwhile we also export to Europe, South America, Africa and South-East Asia,etc. , ''customer first, winning with quality" is our purpose all the time, Market-oriented and timely innovation,which has always been in the industry leader. Our Quilting machine is launched based on the current international market demand,it is used the level of the world's leading European and American Quilting Manufacturing technology .All specifications and equipment keep pace with world-class performance, reliable and widely used technology. Our machine used on clothing,pillows, mattress covers,mattresses,sleeping bags and other products,which can meet the needs of different users. Products include: all type computerized quilting machine(single needle quilting machine, high speed multi needle quilting machine) ,opening machine, carding machine, pillow-filling machine, pillow-compress machine, wadding production line, automatic cocoon bobbin winding machine,etc.We supply business services and perfect after-sales service system, Include technology communication, installation, technology training and spare parts to users all over the world.

---
