Table Milling Machine Manual Universal Bridgeport Milling Machine Zx6350za for Metal Milling Function

Product Description

Milling Machine
Product Description
Standard Accessories
Drill chuck/Drawbar/Work lamp/Milling vice
Coolant system/Chip tray
X-axis mechanical power feed
Y-axis mechanical power feed
Toolbox&tools/Operation manual
Quality certificate/Packinglist
Optional Accessories
DRO/vise
Milling collet chuck
Rotary table
Dividing head
58 pcs clamping kits
Keyless drill chuck Product Parameters

Model No.	Unit	X6032A	X6032B	X6036
table size	mm	1320×320(51.97"×12.60")	1320×320(51.97"×12.60")	1250×360(49.21"×14.25")
table travel	mm	800(750)×300(31.20"(29.53")×11.81")	1000×300(39.37"×11.81")(MANUAL)	longitudinal: 600(23.62") cross: 250(9.84") vertical: 420(16.54"))
worktable swivel angle	°	-	-	±15~±45
worktable longitudinal/cross power feed	mm	-	-	8steps 22~55 rapid: 810
number/width/distrance of T-slot	mm	5/14/63	5/14/63	3/18/80
spindle taper		ISO50	ISO50	7:24 ISO50
distance from spindle center to table surface	mm	0-400(0"-15.75")	0-400(0"-15.75")	0~420(0"-16.54")
distance from spindle center line to arm	mm	-	-	175(6.89")
arm travel	mm	-	-	500(19.68")
spindle speed range	rpm	58-1800	58-1800	60~1800
spindle motor power	Kw	4	4	4
worktable power feed motor	W	-	-	750
worktable elevating moter	Kw	-	-	1.1
coolant pump	W	-	-	90
coolant flow	L/min	-	-	25
overall dimension	mm	2070×1900×1850	2070×1900×1850	1880×1700×1830
G.W.	kg	2200	2300	2200

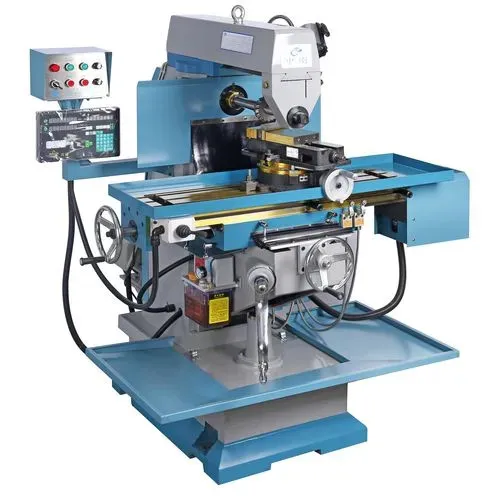

Detailed Photos

FAQ
1. Q: What is the brand of this milling machine? A: The brand of this milling machine is Haas. 2. Q: What is the maximum spindle speed of this milling machine? A: The maximum spindle speed of this milling machine is 10,000rpm. 3. Q: What is the table size of this milling machine? A: The table size of this milling machine is 600mm x 400mm. 4. Q: Does this milling machine have an automatic tool changer? A: Yes, this milling machine has an automatic tool changer with a capacity of 20 tools. 5. Q: What is the travel range of the X-axis on this milling machine? A: The travel range of the X-axis on this milling machine is 500mm. 6. Q: What is the power of the spindle motor on this milling machine? A: The power of the spindle motor on this milling machine is 5.5kW. 7. Q: What is the feed rate of this milling machine? A: The feed rate of this milling machine is 20m/min. 8. Q: What is the machining accuracy of this milling machine? A: The machining accuracy of this milling machine is ±0.01mm.

---
