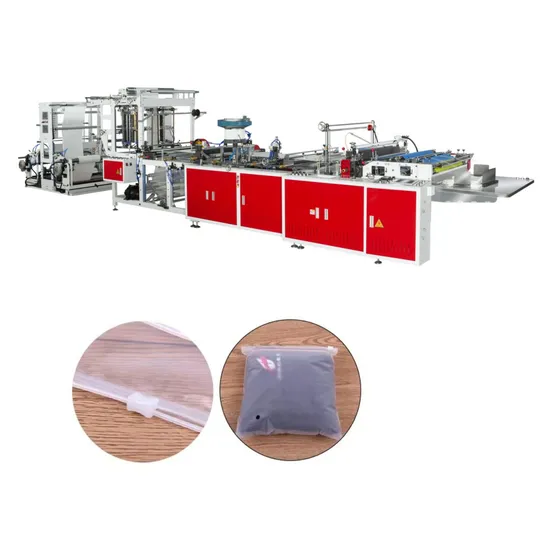

EVA Slider Zipper Ziplock Plastic Bag Making Machine for Clothing Packaging Bag with Zipper Attachment Auto Slider-Insert Device

Product Description

Product Description
Product Parameters
Feature:
Application: it is applicable to the automatic zipper bag of PE, PP, OPP, BOPP and other plastic materials, and the packaging of knitting, clothing, food, stationery and so on. It is an advanced bag making equipment instead of imported similar products at present.
Main Parameters:

model	Md-800 high speed PE automatic zipper machine
machine speed	60~160pcs/min
Bag width	50~700mm
Bag length	50~700mm
Bag making thickness	3~10
Voltage	220v/380V
Total power	9kw
Overall dimension	8000×1300×1900mm
weight	2580KG
knife	It is equipped with a set of hot zipper forging copper knife, a set of bag cutting forging imported steel knife and a set of cold knife
Unwinding diameter	600mm (with automatic deviation correction, automatic magnetic particle constant tension, automatic feeding and automatic shutdown without material)
Pneumatic punch	Round hole 1 pc
Conveyor belt	Imported Kodak brand
Automatic photoelectric tracking	Imported from Germany
Electric control system of the whole machine	Special multi motor tension drive system stepping motor Songyang brand (servo motor can be used)
Variable frequency reduction motor	Guangdong Wanxin
relay	OMRON
Pneumatic components	Yadeke, Shenzhen, etc
Automatic slider vibrating plate	Guangdong
Ultrasonic bag mouth flattening reinforcement	Guangdong
Temperature display instrument	Thermometer made in Shanghai for displaying the surface temperature of preheating roll
Common electrical components / switches	Chint electric
Frequency converter	Changsha beishide
Computer touch screen	Taiwan Weilun
PLC	Mitsubishi
Variable frequency motor	Shanghai Suchuan
Bearing	Mostly imported from Japan
List of free accessories	1 temperature control line, 1 high-temperature cloth, 50 springs, random accessories, a set of toolbox, an oil gun, 1 temperature control meter, 1 heating tube and 1 switch. All instructions of this machine. Application: it is applicable to the automatic zipper bag of PE, PP, OPP, BOPP and other plastic materials, and the packaging of knitting, clothing, food, stationery and so on. It is an advanced bag making equipment instead of imported similar products at present.

auto zipper slider part touch screen, easy operational double unwind part,Multi-function,for auto tension and EPC device,auto loader, sealing side device, multi-functional electric controller, 2 servo motor conveyor belt for high speed
bag photo
Company Profile

Packaging & Shipping
Certifications
FAQ
Q: Are you manufacturer or trading company?
A:We are the manufacturer and have our own workers and factories.
Q:How long is the warranty period?
A: All of our products have 2 year warranty and whole life maintance
Q: What's the main market of your company?
A: We have customers all over the world
Q: What's your delivery time and payment Terms?
A: Normally,it need about 10-30 days.The exact time depends on your quantity.The payment terms always 30% deposits,70% to be paid before shipment.
Q: What package do you use for the product?
A:Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost.
Q: Does your factory provide installation service?
A:Our engineer can go to customer factory to installation . buyer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 120-150USD/Day per person since the day start out until the day arriving at factory.
Q: Can we visit your machine operation in your factory?
A: Welcome to you go to our factory to see the machine operation.
Q: Where's your factory located? How can we visit there?
A: We are in Zhixin industry Zone, Ruian City,Zhejiang province,China.
You can by air to Wenzhou airport and by High-speed train to Rui'an Station
