Product Details
Product Description
Product Description

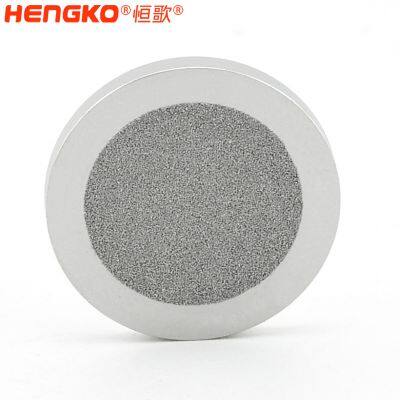

Sintered Porous Stainless Steel Filter Disc 316L Stainless Steel Sintered Metal Powder Filter Uesd In Porous Transport Layer
For each product, we strive to strictly control the manufacturing quality to help your project complete successfully
HENGKO stainless steel filter disc is made by sintering 316L powder material or multilayer stainless steel wire mesh at high temperatures. They have been widely used in environmental protection, petroleum, natural gas, chemical, environmental detection,instrumentation, pharmaceutical equipment and other fields.HENGKO micron pore sized grade stainless steel filter disc has excellent performances of smooth and flat internal and external tube wall, uniform pores and high strength. The dimensional tolerance of most models is controlled within ±0.05 mm.
Features:
1. Customizable, professional engineers for your design or production according to the drawings
2. High degree of cooperation, the customers we have cooperated with are always full of praise
3. Exquisite workmanship, can cooperate with customers to produce products with high technical requirements
HENGKO sintered disc filters consist of highly uniform, interconnected networks of pores with tortuous paths that trap solid particles in gas or liquid. Excellent depth filters with superior mechanical strength. Stainless Steel Type 316L withstands temperatures up to 750°F (399°C) in oxidizing and 900°F (482°C) in reducing environments. These filters can be cleaned by other methods, such as ultrasonic baths or reverse flow flushing. If your application requires even greater resistance to corrosion, temperature, wear, and vibration, other nickel-based alloys are available.
Want more information or would like to receive a quote?
Click the CHAT NOW button at the top right to contact our salespeople.
HENGKO manufactures filter in a broad range of materials, sizes, and fittings so they can be easily specified with the characteristics and configurations customers require. We can incorporate custom features or create completely original filter designs for specialized needs. Our filter also come a variety of different alloys, each with their own special benefits and application purposes. They are a popular choice for many industrial filtration applications due to their heat, corrosion, and physical wear resistance.
Detailed Images
Material
| 304, SS 316L, stainless steel
| Max pressure
| 5MPa
|
Specifications
| Alloy, Bronze, brass
| Max temperature
| 600 degree
|
Types
| disc, plate, cup, tube cartridge, irregular
| Feature
| High-precision filtration,Strong mechanical strength
Can withstand high pressure applications
|
Diameter Size
| 2.0 mm to 450 mm
| Special service
| OEM ODM Support Customed
|
Height Size
| 1.0 mm to 100 mm
| Pore Size
| stainless steel (0.2-120um)
|
Features:
- High filtration efficiency.
- High mechanical strength.
- High permeability and porosity.
- Anti-corrosion and anti-pressure.
- Even distribution of pores catalysis recycling accurate filtering.
- Can be used at high and low temperature.
- Easy to clean and can be used for many times.
- Long service life.
HENGKO stainless steel filter disc is made by sintering 316L powder material or multilayer stainless steel wire mesh at high temperatures. They have been widely used in environmental protection, petroleum, natural gas, chemical, environmental detection, instrumentation,pharmaceutical equipment and other fields.HENGKO micron pore sized grade stainless steel filter disc has excellent performances of smooth and flat internal and externaltube wall, uniform pores and high strength. The dimensional tolerance of most models is controlled within ±0.05 mm.
HENGKO sintered stainless steel filter plate, also called sintered metal porous filters, adopt stainless steel 316, 316L powder as raw materials and then produced through sizing, molding and sintering processes. Because of stainless steel material, so the sintered metal powder filter elements are also known as sintered stainless steel powder filter element.
HENGKO nano micron pore sized grade mini stainless steel sintered filter plate have excellent performances of smooth and flat
internal and external tube wall, uniform pores and high strength. The dimensional tolerance of most models is controled within 0.05 mm.
High technology special process molding The 316L material used to produce these filters. They are made by uniaxial compaction of powder in a rigid tool with the negative shape of the part, and then sintered. The pore size is adjusted by changing the compaction pressure and/or the particle size of the powder. Powder metallurgy technology is able to create other shapes, such as blind cylinders and other special geometries. In these cases it is necessary to build a specific tool according to the required design.
HENGKO will serve you wholeheartedly and look forward to hearing from you!
Certificate
Certificatate by CE, ISO9001, FCC, ROSH etc. Patents 30+
Company Introduction
FAQ
Q1. Are you manufacturer or trading company?
--We are direct manufacturer specializing in porous sintered metal filters.
Q2. What's the delivery time ?
--Normal model 7-10 work days because we have ability to do the stock. For big order, it takes about 10-15 work days.
Q3. What is your MOQ?
-- Usually, it is 100PCS, but if we have other orders together, can help you with small QTY also.
Q4. What payment ways available?
-- Western Union, Paypal , T/T , Credit Card , online bank transfer, RMB , etc.
Q5. If sample first possible?
-- Sure, usually we have certain QTY of free samples, if not, we'll charge accordingly.
Q6. We have design, can you produce?
--Yes, welcome!
Q7. Which market do you already sell?
--We already ship to Europe, Middle East, Asia, South America , Afria, North America etc.
>>
