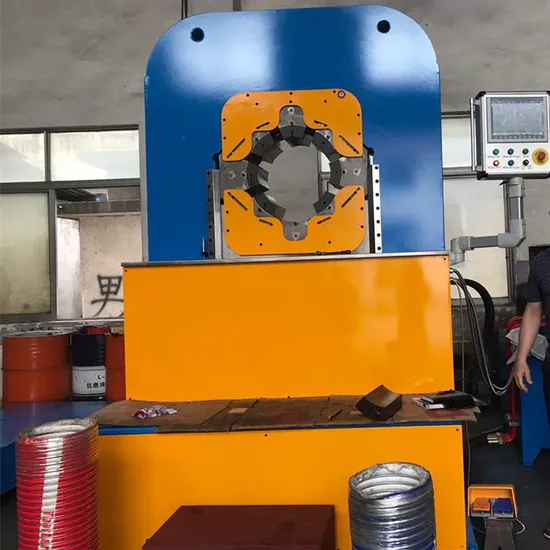

1/4"-12"Automate Hose Crimping Machine

Product Description

Composite hose/rubber hose/PTFE hose crimping machine
1. Machine description
Our crimping machines can be used for 1/4'' to 12'' composite hoses, rubber/hydraulic hoses and PTFE hoses etc... Our machines are equipped with PLC touch screen(Siemens), foot switch and quick-assembly toolings. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device. This machine features are as below:
* High accuracy
* Strong force(up to 1000 tons)
* Low noise
* Easy operate with PLC and touch screen
2. Machine details
A. 1/4'' - 3'' hose crimping machine
(1) Crimping range: 4mm-116mm
(2) Max. Opening with die set: 220mm
(3) Max. Opening without die set: 260mm
(4) Max. Crimping length: 116mm
(6) Max. crimping force: 350Tons
(8) Operation type: Manual, automatic and foot switch(foot switch should connect to both manual
and auto and should be controlled by a rotary switch)
(9) Control type: 12'' movable industrial digital display, and micrometer caliper
(10) Max. oil pressure: 28Mpa
(11) Motor power: 5.5KW
(12) The machine is completely with a mould rack with clear marks of size.
(13) Weight: 2.2 Tons
(14) Estimated Dimension:(L*W*H): 1180*950*2000mm
(15) Other supporting device: Hydraulic power unit; holding pressure control; return control; water
cooling device
B. 3'' - 12'' hose crimping machine
(1) Crimping range: 84mm-410mm
(2) Max. Opening with die set: 500mm
(3) Max. Opening without die set: 590mm
(4) Max. Crimping length: 285mm
(6) Max. crimping force: 1000Tons
(8) Operation type: Manual, automatic and foot switch(foot switch should connect to both manual
and auto and should be controlled by a rotary switch)
(9) Control type: 12'' movable industrial digital display, and micrometer caliper
(10) Max. oil pressure: 28Mpa
(11) Motor power: 22KW
(12) The machine is completely with a mould rack with clear marks of size.
(13) Weight: Machine body: 8-9 Tons, hydraulic station 1.5 Tons
(14) Estimated Dimension:(L*W*H): 1850*1850*3080mm
(15) Other supporting device: Hydraulic power unit; holding pressure control; return control; water
cooling device
3. Machine stuctures
Die sets and quick-assembly toolings
PLC controllers and micrometer
4. Our company
We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines,such as hose forming machine, hydro forming machine, wire braiding machine, rewinding machine, bellow forming machine, crimping machines etc.. We are lead manufacturer of flex-related products in China. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety and environmental standards and deliver dependable, repeatable performance and value.
5. RFQ
Q: Why choose us?
A: We are most professional manufacturer with more than 25 years of experience.
Q: What size can you make?
A: All the sizes from 1/4'' up to 12'' can be made on different machines.
Q: What is the application for the crimping machine?
A: Composite hoses, rubber hoses, hydraulic hoses, PTFE hoses etc...

We need to know following information to quote you correct machineries:
1. Size range you want to crimp
2. The application of the hose
3. Wall thickness of the hoses
4. Information of the fittings

---
