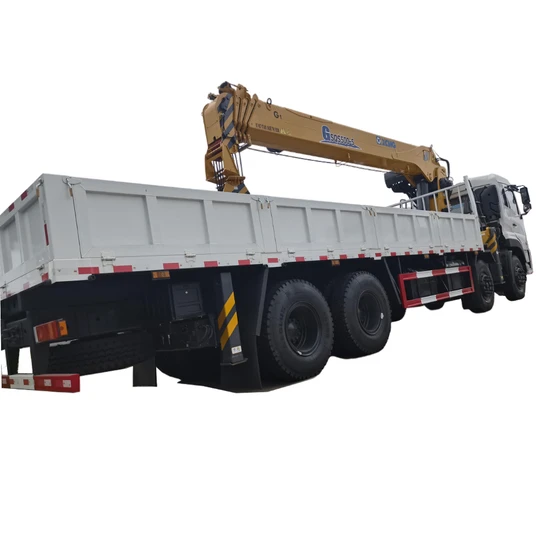

Dongfeng 8X4 Telescopic Boom Crane Truck for Heavy Lifting

Product Description

dongfeng 8x4 folding arm 20-30 ton mounted crane truck SQS500-5 telescopic boom crane Product Description
>>>Mounted crane truck description:
The truck-mounted crane integrates lifting and transportation, and can be configured with a variety of operating forms and matched with a variety of lifting attachments. Classic octagonal crane design, made of high-strength steel, with strong lifting capacity. The hydraulic system is manufactured with advanced foreign technology and equipped with high pressure filter as standard to enhance the service life. The control valve is smoothly operated and precisely positioned. The crane can be equipped with optional aerial seats, night operation lights, wireless remote control, etc. Convenient operation, high efficiency, safety and reliability, wide use of scenes, strong climbing ability and large operating range.
Product Parameters
>>>Mounted crane truck parameters for your reference:

Truck Horsepower		340HP
Dimesion		11980×2550×3950mm
flat bed dimension		7800×2300×550
Kurb weight		20000
Loading weight		16000
Cabin		Dongfeng TianLong D530 cab, Reversible, with sleeper, with air conditioning, electric windows
Front axle		7.5 ton *2 unit
Rear axle		13 ton *2 unit
Transmission		FAST 12-speed gearbox
Vehicle frame		Special beam for truck crane
Tires		12.00R20 steel wire tires 13pcs with spare tire
ABS		HAVE
PTO interface		HAVE
PTO		HAVE
Suspension		Mechanical suspension, front: 1500, rear:2680
Departure angle		Front 20 rear 10
Leaf spring		Steel plate springs 9/9/10
Axle		4 axles
wheelbase		2050+4400+1350
Tires Number		12+1
Track		1860/1860
Type		8*4 LHD
Motor		Cumins motor L340-20
Brakes		Drum type, Air break.
Spare tire rack		HAVE
Voltage		24V
Toolbox		HAVE
Hoist model		SQZ500 Telescopic Boom
Maximum lifting mass		20T
Maximum working radius		16.8m
Maximum lift height		20.5m
Crane weight		9000KG
Crane type		360 degree full hydraulic, full swing, dual cavity rear landing gear
Landing gear number		4 unit
high operating seat		have
flat material		Bottom (checker plate) 5mm
Bottom bracket material		billet
Beam Spacing		300~350mm
other		Upside operation, double pump, full rotation, automatic hook retraction, with radiator, double cavity double front outrigger

Detailed Photos
>>>Mounted crane truck details display:
>>>Mounted truck crane option :
1. Increase the wireless remote control equipment, reduce manpower and material resources, reduce costs, safety and convenience
2.The boom can be selected in two ways: telescopic boom or folding boom
3. Work light can be added to the upper part of the boom, and the truck can add protective light cover and rotating LED warning light
