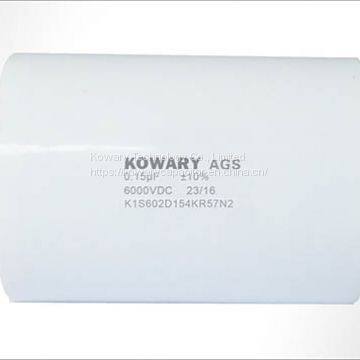

Power Electronic Capacitor High Voltage Film Capacitor AGS

Product Details

Product Details

Product Description

Product Description
■GENERAL TECHNICAL CHARACTERISTICS
Reference standards IEC 61071
Dielectric Polypropylene film
Construction Dry construction, Non-inductive type
Case Polyester tape wrapping; UL94V-0 resin filling
Leads Tinned copper wire
Dissipation factor ≤8×10-4 Measured at 1000 Hz and 20±5℃
Life expectancy 100,000 hours at UNDC and 70 ℃(Hot-spot temperature)
Dielectric strength 1.5×UNDC applied to 10s at 20±5 ℃
Test voltage terminal to case 3KVAC/50Hz for 60s
Insulation resistance(IR*CN) 30000s but need not exceed 30GΩ, after 1 minute of electrification at 100Vdc (20±5℃)
■ELECTRICAL SPECIFICATION Unit: mm
Part
Number
Capacitance
(μF)
Dimension (mm)
Du/dt
(v/μs)
Ipeak
(A)
Urms
(VAC)
L
D
d
UNDC 5000 Vdc, Us 7500 Vdc
K1S502D223KR44N2***
0.022
44.0
12.5
0.8
700
15.4
2000
K1S502D333KR44N2***
0.033
44.0
14.5
0.8
700
23.1
2000
K1S502D473KR44N2***
0.047
44.0
17.0
1.0
700
32.9
2000
K1S502D683KR44N2***
0.068
44.0
20.0
1.0
700
47.6
2000
K1S502D104KR44N2***
0.10
44.0
24.0
1.2
700
70
2000
K1S502D154KR44N2***
0.15
44.0
29.0
1.2
700
105
2000
K1S502D224KR44N2***
0.22
44.0
35.0
1.2
700
154
2000
K1S502D334KR44N2***
0.33
44.0
42.5
1.2
700
231
2000
UNDC 6000 Vdc , Us 9000 Vdc
K1S602D333KR57N2***
0.033
57.0
14.5
0.8
900
29.7
2400
K1S602D473KR57N2***
0.047
57.0
17.0
0.8
900
42.3
2400
K1S602D683KR57N2***
0.068
57.0
19.5
1.0
900
61.2
2400
K1S602D823KR57N2***
0.082
57.0
21.5
1.2
900
73.8
2400
K1S602D104KR57N2***
0.10
57.0
23.5
1.2
900
90
2400
K1S602D154KR57N2***
0.15
57.0
28.5
1.2
900
135
2400
K1S602D224KR57N2***
0.22
57.0
34.5
1.2
900
198
2400
K1S602D334KR57N2***
0.33
57.0
41.5
1.2
900
297
2400
UNDC 8000 Vdc , Us 12000 Vdc
K1S802D332KR50N2***
0.0033
50.0
10.5
0.8
1200
3.96
3200
K1S802D472KR50N2***
0.0047
50.0
12.0
0.8
1200
5.64
3200
K1S802D682KR50N2***
0.0068
50.0
14.0
0.8
1200
8.16
3200
K1S802D822KR50N2***
0.0082
50.0
15.0
0.8
1200
9.84
3200
K1S802D103KR50N2***
0.010
50.0
16.0
1.0
1200
12
3200
K1S802D153KR50N2***
0.015
50.0
19.5
1.0
1200
18
3200
K1S802D223KR50N2***
0.022
50.0
23.0
1.2
1200
26.4
3200
K1S802D333KR50N2***
0.033
50.0
28.0
1.2
1200
39.6
3200
K1S802D473KR50N2***
0.047
50.0
33.0
1.2
1200
56.4
3200
K1S802D473KR80N2***
0.047
80.0
21.0
1.2
1100
51.7
3200
K1S802D683KR80N2***
0.068
80.0
24.5
1.2
1100
74.8
3200
K1S802D104KR80N2***
0.10
80.0
29.0
1.2
1100
110
3200
K1S802D154KR80N2***
0.15
80.0
34.5
1.2
1100
165
3200
K1S802D224KR80N2***
0.22
80.0
41.0
1.2
1100
242
3200
UNDC 10000 Vdc , Us 15000 Vdc
K1S103D472KR60N2***
0.0047
60.0
12.0
0.8
1500
7.05
4000
K1S103D682KR60N2***
0.0068
60.0
13.5
0.8
1500
10.2
4000
K1S103D103KR60N2***
0.010
60.0
16.0
1.0
1500
15
4000
K1S103D153KR60N2***
0.015
60.0
19.0
1.0
1500
22.5
4000
K1S103D223KR60N2***
0.022
60.0
23.0
1.2
1500
33
4000
K1S103D333KR60N2***
0.033
60.0
27.5
1.2
1500
49.5
4000
K1S103D473KR60N2***
0.047
60.0
32.5
1.2
1500
70.5
4000
UNDC 15000 Vdc , Us 22500 Vdc
K1S153D222KR60N2***
0.0022
60.0
12.0
0.8
2000
4.4
6000
K1S153D332KR60N2***
0.0033
60.0
14.0
0.8
2000
6.6
6000
K1S153D472KR60N2***
0.0047
60.0
16.5
1.0
2000
9.4
6000
K1S153D682KR60N2***
0.0068
60.0
19.5
1.2
2000
13.6
6000
K1S153D103KR60N2***
0.010
60.0
23
1.2
2000
20
6000
K1S153D153KR60N2***
0.015
60.0
28
1.2
2000
30
6000
K1S153D223KR60N2***
0.022
60.0
33.5
1.2
2000
44
6000
Remark: 1. *** Internal code.
2. Customization for special specification and requirement is available.
