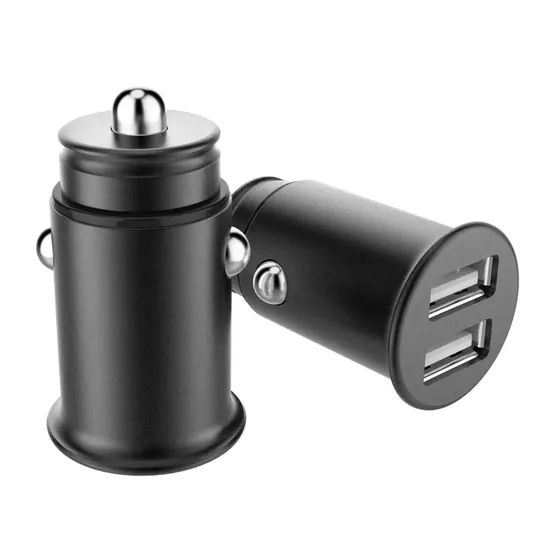

5V 2A Universal Car Charger, USB Car Charger

Product Description

5V 2A Universal Car Charger, USB Car Charger
PROTECTION:
Short circuit protection
Over voltage protection
Over current protection
Thermal shutdown capability
RELIABILITY:
Burn-in: 100% full load, 40 ± 5° C, 4Hrs min
Leakage Current: 0.25mA max. At 254Vac
Withstanding Voltage: (between primary & secondary) 3000Vac 1 minute 10mA max
MTBF: Meet MIL-HDBK-217F over 50K hours, full load, 25 ° C
SAFETY APPROVALS:
UL60950 3 rd edition CAN/CSA C22.2 NO. 60950
EN60950: 2000
CE(Low Voltage Directive)
AS/NZS 60950: 2000
PSE IEC60950
GB4943-2001
EMISSIONS:
FCC Part15 class B
EN55022 class B
AS/NZS3548, AS/NZS4251.1 class B
VCCI class B
CNS13438 class B
GB9254-1998/GB17625.1-2003
CISPR22 class B
SAFETY APPROVALS:
UL1310
EN60335
CE
IMMUNITY:
EN55024/A1: 2001
Electrostatic discharge: 61000-4-2
Radiated electromagnetic fields: 61000-4-3
Fast transients(burst): 61000-4-4
Surge transients: 61000-4-5
Conducted disturbance: 61000-4-6
Voltage dips, interruptions&variations: 61000-4-11

Description	Symbol	Min	Typ	Max		Units	Comment
Input
Voltage	V IN	90	120/240	264		VAC	2 Wire no Protective Ground
Frequency	F LINE	47	50/60	63		Hz
No-load Input Power(230VAC)				0.3		W
Efficiency	η		75			%
Inrush Current(240Vac)	I		40			A
Environmental
Operating Temperature	T	0	/	40		oC	Free convection, Sea level
Non-operating temperature	T	-20	/	80		oC	Free convection, Sea level
Operating humidity	T	10	/	90		%RH	Non condensing
Non-operating humidity	T	10	/	90		%RH	Non condensing

INPUT CONDITION		DC OUTPUT VOLTAGE	DC OUTPUT CURRENT	OUTPUT VOLTAGE PRECISION	RIPPLE & NOISES	REGULATION		MAXIMAL OUTPUT POWER
						LINE	LOAD
Input Voltage: 90-264Vac Frequency: 47-63Hz Input current: 0.3A	1	21-24V	0-0.57A	5%	150mV	±1%	±5%	12W
	2	16-20V	0-0.75A	5%	150mV	±1%	±5%	12W
	3	10-15V	0-1.2A	5%	100mV	±1%	±5%	12W
	4	9.4-9.9V	0-1.06 A	5%	100mV	±1%	±5%	10W
	5	8.8-9.3V	0-1.14A	5%	80mV	±1%	±5%	10W
	6	8.2-8.7V	0-1.22A	5%	80mV	±1%	±5%	10W
	7	7.6-8.1V	0-1.32A	5%	70mV	±1%	±5%	10W
	8	7.0-7.5V	0-1.43A	5%	70mV	±1%	±5%	10W
	9	6.4-6.9V	0-1.56A	5%	60mV	±1%	±5%	10W
	10	5.8-6.3V	0-1.72A	5%	60mV	±1%	±5%	10W
	11	5.2-5.7V	0-1.92A	5%	60mV	±1%	±5%	10W
	12	4.6-5.1V	0-2.17 A	5%	50mV	±1%	±5%	9.2W
	13	4.0-4.5V	0-2.0A	5%	50mV	±1%	±5%	9W
	14	3.4-3.9V	0-2.0A	5%	50mV	±1%	±5%	7.8W
	15	2.8-3.3V	0-2.0A	5%	50mV	±1%	±5%	6.6W

We have been applied different safety certifications for all products, including latest UL62368-1. Home appliances/IEC61558; Battery charger/IEC60335; All power adaptor got UL, cUL, ETL,FCC, CB, GS, CE, SAA, C-tick, PSE, BSI, KC, CCC etc. Supply high quality power supply to global customers.
We have been adopt automatic production equipment since 2012, such as latest automatic test and aging system, not only improve quality and increase productivity, but also reduce labor cost to offer customers competitive price.
Workshop scale over 5000 square meters, with more than 200 skilled workers and 50 experienced technical teams and sales dept. Passed ISO9001 quality management system, and adopt top ERP management system.
FAQ:F Q1.How does your company do regarding quality control? Our QC team will do strict quality control inspection before shipment to assure best quality. Q2.Can you do OEM & ODM? Yes, we do OEM & ODM orders. Just give us your design. We will make samples for you soon. Q3.What is the packaging for your product? Our product have retail packaging with good quality, and we also can do customized packaging
for our OEM customer. Please contact us and inform the packing details you like. Thanks. Q4.Can i get a sample from you for quality checking? For make samples, we need around 3-5 days to produce it. Q5.What about the lead time for mass products? 25-30 days after deposit received. Q6.Are you a trader or factory? NiteRay was established in 2005 ,we have our own factory to produce charger products for 15 years. Q7.How long can i expect to get the sample i needed? After receiving sample confirmed files from you, the samples will be delivery via DHL,UPS,TNT,ETC and arrive in your country in 3-5 days. Q8.Is your price competitive enough? As a manufacturer that have been in charger products line for 15 years, have ability to control the cost, so our price is competitive, and our main target is to guarantee high quality products. We are looking forward to cooperation with you in the future !

---
