Hot Sale Multi-Purpose and High Quality Drill Press Z3040*13 Bench Drilling Machine

US$3,500.00-4,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3040-13/2
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max. Drilling Diameter
40mm
Spindle Speed Range
75-1220rpm
Distance Spindle Nose and Work Surface O
320-1220mm
Rocker Arm Lifting Distance
580mm
Rocker Arm Lifting Speed
0.02m/S
Spindle Travel
200mm
Spindle Feed Steps
3
Spindle Speed Steps
6
Spindle Feed Range
0.1-0.22 mm/R
Main Motor Power
2.2kw
Rocker Rotary Angle
360
Movements Motor Pwower
1.5
Transport Package
Wooden Case
Specification
1800*810*2300mm
Trademark
wewoo
Origin
China
HS Code
8459619000
Production Capacity
300/Month

Packaging & Delivery

Package Size
200.00cm * 100.00cm * 250.00cm
Package Gross Weight
2500.000kg

Product Description

Hot Sale Multi-Purpose and High Quality Drill Press Z3040*13 Bench Drilling Machine
Product Description

Specifications
SPECIFICATIONS Units Z3040x13
Max. drilling dia. mm 40
Distance between spindle nose and table surface mm 360-1300
Distance from spindle axis to column surface mm 260-1200
Spindle travel mm 200
Spindle speed range rpm 75-1220
Spindle speed steps - 6
Spindle feed range mm/r 0.10-0.22
Spindle feed steps - 3
Main motor power kw 2.2
Machine weight kg 2200
Overall dimension mm 1800*810*2300

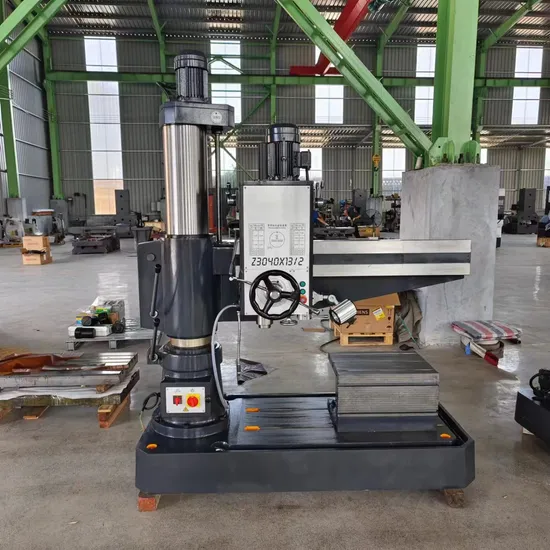

Detailed Photos

CENTRALIZED MECHANICAL
SHIFT
Concentrated mechanicalspeedchange.12 steps from 40-1896r/mm.convenient and quick
Radial Arm Clamping
Radial arm mechanical clampingHigh stability.
Column Clamping
Vetical column mechanical clampingHigh stability and stronger
Table
High Audio quenching table.
Enhanced accuracy & rigidity.
Electrical BoX
High quality imported electrical box.High performance &long uselife

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
