Slim Shaft Straightening Machinery for Screws Ball Tie Rods Punch Pin

Product Description

Vertical Straightening Machine - Product Description

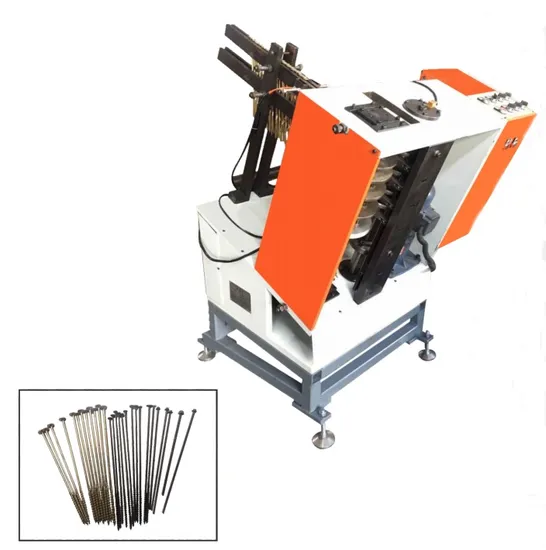

Vertical Straightening Machine Slim Shaft Straightening Machinery for Screws, Ball Tie Rods, Punch Pins The Vertical Straightening Machine offered by Sunrise Mechatronic Technology Co., Ltd. is a precision straightening machine designed for step workpieces or long bars. It is a versatile machine that utilizes the principle of hydraulic pressure to move two spindle rollers simultaneously, allowing for left and right movement on the workpiece to achieve extrusion straightening.
This machine is particularly effective in straightening harder workpieces with high hardness. It is suitable for straightening auto parts handles, half shafts, oil machinery tie rods, standard parts, and more.
For added convenience, the machine can be equipped with an automatic loading and unloading structure, as well as a long bar material automatic feeding receiving machine, based on the specific requirements of the workpiece.
The Vertical Straightening Machine is specifically designed to straighten long thin bolts or long thin shafts with head steps. It is ideal for straightening wood screws, ball pullers, punching pins, and similar workpieces.
Applications
Product Name: Slim Shaft Straightening Machinery for Screws, Ball Tie Rods, Punch Pin
Company Name: Sunrise Mechatronic Technology Co., Ltd.
Keywords: Slim Shaft Straightening Machinery, Screw Ball Tie Rods Punch Pin, Automatic Feeder, Nail Straightener, Screwdriver Straightening Machine, Shaft Straightening Machine, Screw Straightening Machine, Straightening Machinery, Slim Shaft Straightening, Ball Tie Rods, Punch Pin, Automatic Screw Feeder, Nail Straightening Equipment, Screwdriver Straightener, Shaft Straightener, Screw Straightener, Feeder for Screws, Nail Straightening Machine, Straightening Machinery for Screws, Slim Shaft Straightener, Tie Rod Straightening, Punch Pin Straightener, Feeder for Ball Tie Rods, Straightening Equipment for Screws, Slim Shaft Straightening Machine, Rod Straightening Machine, Pin Straightening Machine, Automatic Straightening Machine, Feeder for Punch Pin, Straightening Equipment for Ball Tie Rods, Slim Shaft Straightening Equipment, Rod Straightening Equipment, Pin Straightening Equipment, Automatic Straightening Equipment, Feeder for Punch Pin Straightening, Straightening Machinery for Ball Tie Rods, Slim Shaft Straightening Machinery, Rod Straightening Machinery, Pin Straightening Machinery, Automatic Straightening Machinery, Feeder for Punch Pin Straightener
Product Description: The Slim Shaft Straightening Machinery by Sunrise Mechatronic Technology Co., Ltd. is designed for straightening screws, ball tie rods, and punch pins. It features an automatic feeder and is ideal for nail straightening and screwdriver straightening. This versatile machine is perfect for various applications, including shaft straightening, screw straightening, and more. Trust Sunrise Mechatronic Technology Co., Ltd. for reliable and efficient straightening machinery.

UBJ-L400 Vertical Straightening Machine Main Technical Parameters
Name of machine	Specification
Motor power	1.5KW
Diameter of the piece wheel (straightening wheel)	ø185-ø190mm
Diameter of straightened workpiece	ø5-ø10mm
Straightening beat	3-5 seconds
Machine external dimensions	L1.3m*W1m*H1.3m
Total weight of machine	900KG

FAQ
Company Name: Sunrise Mechatronic Technology Co., Ltd.
Product Description:
Q: What are your normal lead times?
A: Our company lead times range from 30-45 days after receipt of order.
Q: What are the terms of payments you offer?
A: We accept payment of T/T, L/C, Western Union, Cash, and Credit Card.
Q: What kind of package do you offer?
A: The whole machine and every part are wrapped in plastic film for dusting-proof. They are then packed in export standard wooden cases with pallets, making them conducive to forklift handling.
Q: What is the MOQ for your production?
A: The MOQ depends on your requirements for color, logo, and other specifications. For some normal items that we have in stock, the MOQ is 1 set.
Q: Do you have CE certification?
A: Yes, we have CE certification. Our machines come with a one-year guarantee on quality.
After Sales Services:
We have Local After-sales Service in India and Vietnam. Our normal machines are properly adjusted before dispatch, allowing you to use them immediately. Additionally, we offer free training advice for our machines in our factory. You will also receive free suggestions, consultations, technical support, and service via email, fax, and telephone. We provide lifetime technical support for our products.

---
