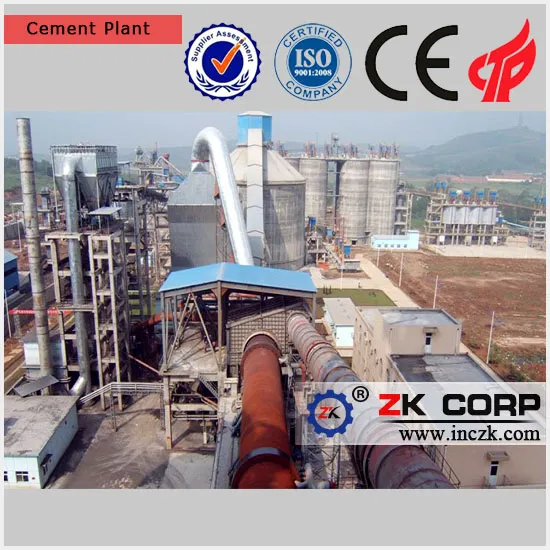

100-2000tpd Small Scale Cement Plant

Product Description

100-2000tpd Small Scale Cement Plant
Main characteristics of Small Turnkey Cement Plant Manufacturer:
1. Small Turnkey Cement Plant adopts advanced technology and equipment of current cement industry. With the advanced technology and dependable equipment, great economy benefits can be acquired.
2. The high-efficiency low-resistance five-stage cyclone pre-heater and cdc furnace system with high gas adaptability, high classification efficiency, high heat exchanging efficiency and low system resistance will be adopted at the kiln inlet, so as to increase the output of clinker.
3. New technology will be adopted at the rotary kiln head.
4. In the raw meal grinding section, air swept drying mill is adopted. The raw material is dried by waste heat from the kiln inlet to save energy and investment.
5.According to technology requirements of the new dry process rotary kiln, advanced computerized
dcs control system is adopted for the control of main production parts from bottom of raw material blending silos to top of cement silos. And PLC control system is adopted for other parts.
6.Great importance has been attached to the environment protection in the plan. In order to measure up to the environment protection standard, advanced and practicable dust collectors are adopted at all dust generating points.

Brief introduction of Small Turnkey Cement Plant:
1) Limestone crushing
2) Raw material storage and blending
3) Raw meal grinding
4) Raw meal homogenizing and kiln feeding
5) Kiln inlet, kiln middle, kiln head and pulverized coal preparation
6) Waste gas treatment at kiln inlet
7) Clinker and admixture storage
8) Cement grinding
9) Cement storage and packing

Cement Production Line Configuration Dry process cement production line (25-200t/d)Configuration

Capcity		25t/d	50 t/d	100 t/d	150 t/d	200 t/d
Rotary kiln	Specification	Φ1.4×33m	Φ1.6/1.9×36m	Φ2.2×45m	Φ2.5×50m	Φ3×60m
	Capacity	1t/h	2t/h	4t/h	6t/h	8t/h
	Calcination Temperature (ºC)	1450	1450	1450	1450	1450
Raw mill	Specification	Φ1.2×4.5m Open circuit	Φ1.5×5.7m Open circuit	Φ1.83×6.1m Open circuit	Φ1.83×6.1m Closed circuit	Φ2.2×6.5m Closed circuit
	Capacity	1.7t/h	4.5t/h	9t/h	12t/h	16t/h
	Motor power	55kW	130kW	210kW	210kW	310kW
Cement mill	Specification	Φ1.2×4.5m Open circuit	Φ1.5×5.7m Open circuit	Φ1.83×6.1m Open circuit	Φ1.83×6.1m Closed circuit	Φ2.2×6.5m Closed circuit
	Capacity	1.4t/h	3.5t/h	6.5t/h	8t/h	12t/h
	Motor power	55kW	130kW	210kW	210kW	310kW

New dry process cement production line (300-1500t/d) configuration

Capacity		300t/d	700 t/d	1000 t/d	1500 t/d
Pre-heater	C1	2-Φ2500	Φ3500	Φ4800	2-Φ4000
	C2	Φ3600	Φ4800	Φ4800	Φ5800
	C3	Φ3600	2-Φ3700	Φ5200	Φ5800
	C4	Φ3600	Φ4800	Φ5200	Φ6200
	C5	Φ3600	Φ4800	Φ5200	Φ6200
Pre-calciner	Specification	Φ2200	Φ2800	Φ4800	Φ5200
Rotary kiln	Specification	Φ2.8×44m	Φ3×48m	Φ3.2×50m	Φ3.5×54m
	Capacity	12.5t/h	30t/h	42t/h	63t/h
	Calcination temperature (ºC)	1450	1450	1450	1450
Raw mill	Specification	Vertical roller mill Φ1700	Dry mill Φ3.2×7+1.8m	Dry mill Φ3.5×10m	HRM2800 Vertical roller mill
	Capacity	30t/h	50t/h	85t/h	130~160t/h
	Motor power	400kW	1000kW	1250kW	1250kW
Cement mill	Specification	Φ2.4×13m Open circuit	Φ3×11m Closed circuit	Φ3.2×11m Closed circuit	Φ4.2×13.5m Closed circuit
	Capacity	22t/h	42t/h	64t/h	95t/h
	Motor power	800kW	1250kW	1400kW	3550kW
