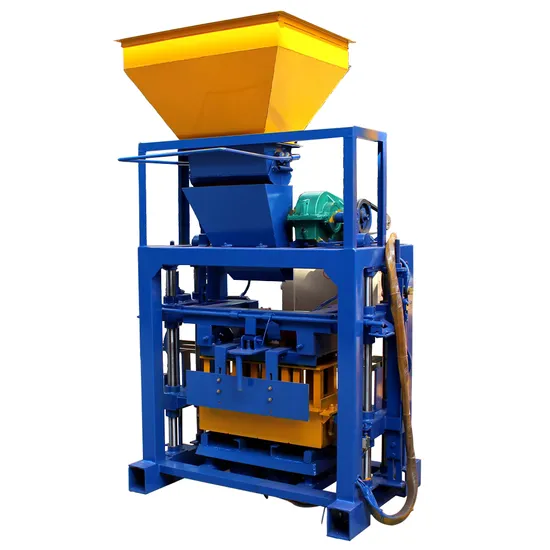

Qt40-1 Manual Block Making Machine

Product Description

Product Description

QT40-1 hollow block machine intruction
1. QT40-1 hollow block machine absorbs foreign advanced mechanical technology, can produce hollow blocks, solid bricks and so on. QT40-1 hollow block machineuses international brand-name Germany Siemens motors and Japan Mitsubishi PLC, reliable quality, low fault rate and durable. With national standard high strength steel, reliable quality.
2.We have exported many machines to Pakistan, Oman & Russia, etc. And our machine are well-recognized by most of our clients,
3.QT40-1 hollow block machineadopts bottom mould directional vertical vibration and upper mould pressurized vibration to make the product molding fast, high density and strength uniform. Design of QT40-1 hollow block machine is very reasonable, pushing-pulling mould is driven by electromotor, manual feeding, very simple to operate, compared with QT40-2 baking-free brick machine, it's with higher automatic, and save 1-2 workers, and labor intensity is relatively low. In 8 hours it can produce the solid bricks (240*115*53mm) about 11000 pieces.

Main Technical parameter
Dimension of host machine	1350x1460x1800MM	Total machine power	8.8KW
Mould period	40S	Vibration force	30KN
Pallet size	850x450x25MM	Mixer Model	JQ350
Workshope area	60m2	weight	1.1T

Production cpacity
Size (LxWxH)	Pcs/mould	Pcs/Hour	Pcs/Shift
400x200x200MM	4	280-380	2240-2800
400x100x200MM	7	500-630	4000-5040
400x150x200MM	5	360-450	2880-3600
400x250x200MM	3	220-270	1760-2160

Certifications




Detailed Images


Main Features
Name: Vibrator
Brand: Liyuan
Original: China
Domestic famous brand vibrator ,high vibraton force
Our Service


Pre-Sales Service
* Inquiry and consulting support.
* machine test in workshop
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.


Finished Blocks

---
