Horizontal Boring and Milling Machining Center Heavy Duty CNC Horizontal Milling Hmc Boring Machine

Product Description

Main Features

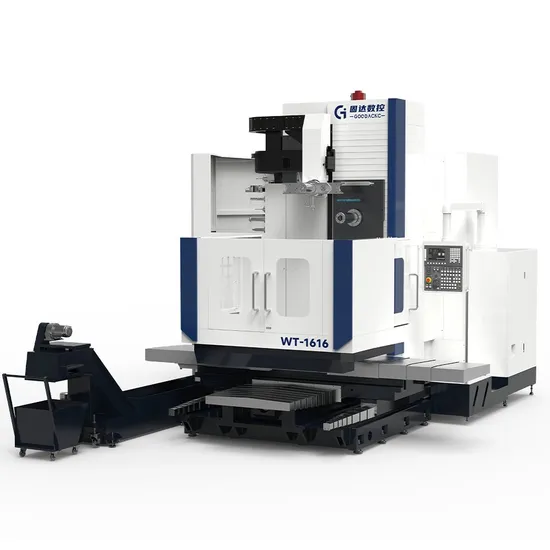

GooDa CNC Horizontal Boring and Milling Machining Center WT-series is mainly used for processing various types of large, medium-sized plate parts, box parts, molds, and other components.
Once the workpiece is clamped, it can complete a series of machining processes such as milling, drilling, boring, and reaming with high precision and efficiency automatically or manually.
It's suitable for metal processing in a wide range of industries, including moldmaking, aviation, heavy machinery, locomotives, shipbuilding, power generation, machine tools, printing, textiles, and others.
Main Functions
High Precision
Spindle Cooling Mechanism
1. Control the thermal displacement during spindle rotation to the minimum by cooling the bearing box and gearbox.
2. The spindle bearing adopts a tapered roller, which can bear radial and axial loads at the same time. It adopts circulating cooling and lubrication, which reduces the rise in temperature and obtains high accuracy.
High Rigidity and Torque
1. Wide sliding surface supports high-load machining
X, and Y, Z axes adopt quenched and rectangular wide sliding surface
2. Robust machine construction
The machine body adopts a highly rigid box structure
High Production Efficiency
High-level spindle performance and fast feed rate
1. Spindle output power:
15/18.5 KW(FANUC system)
17/20.5 KW(SIEMENS system)
2. Rapid feed:
X, Y, Z axis: 10m/min
W axis: 5m/min
B axis: 5.5rpm
Excellent Spindle Performance
Supports machining of various workpieces, such as low-speed high-output machining via large-diameter milling cutters, high-torque machining via large-diameter borings, etc.
The boring bar can extend 550mm (the boring shaft is displacement type, and the spindle adopts stepless speed regulation.)
Good access to the workpiece, ideal for deep boring.
Rapid movement reduces non-cutting time
Rapid feed:
X, Y, Z axis: 10m/min
W axis: 5m/min
B axis: 5.5rpm
Applications
Our team of experts is ready to help you find the machine most suitable for your processing needs. Get Expert Assistance Now! Product Parameters

Model	WT-1616
Category	Attribute	Value	Unit
Worktable	Worktable size	1350*1000	mm
	Max. load capacity	5	T
	T-slot	7-22*125	/
Travel	X-axis travel	1600	mm
	Y-axis travel	1600
	Z-axis travel	1200
	W-axis travel	550
Ball screw	X/Y/Z/W	6310/6310/6310/5010	mm
Spindle	Tool holder specifations	BT50-130-1200	/
Feed speed	Rapid feed rate X/Y/Z/W	10/10/10/5	m/min
	Cutting feed rate X/Y/Z/W	2/2/2
Machine accuracy	Positioning accuracy(X/Y/Z/W)	0.02/1000	mm
	Repeat positioning accuracy(X/Y/Z/W)	0.015/1000
Tool magazine	Chain type tool magazine	40	T
Power requirement	X/Y/Z/W/B servo motor	37/37/37/27/27	N·m
	Spindle motor	15/18.5	KW
	Rated voltage	AC380V±10%	V
	Total power	40	KW
	Air pressure	0.6-0.8	Mpa
Space & weight	Machine weight	18	T
	Machine size (L*W*H)	6613*4460	mm

Company Profile
Factory Display

Certifications

FAQ
Q1. What is your minimum order quantity and warranty?
A1: MOQ is one set, and the warranty is 12 months.
Q2. What CNC system do you use?
A2: FANUC, SIEMENS, MISTSUBISHI, etc. It depends on your choice.
Q3. When is the delivery time?
A3: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit; For special machines, the delivery time may be longer, and we will provide you with an updated timeline accordingly.
Q4. What is the packaging for the machines?
A4: Packaging: PE bag cover (inside), plywood box, and steel beam frame. Other packing methods are also available.
Q5. How can I select the most suitable machine?
A5: Please let us know your machining requirements or the machine size, and we can recommend the best model for you.
Alternatively, you can choose the exact model yourself. You can also provide us with the product drawings, and we will help you select the most appropriate machine.
Q6. What are your trade terms?
A6: FOB, CFR, CIF, or other terms are all acceptable.
Q7. What are your payment terms?
A7: We accept T/T with a 30% deposit when placing the order and the remaining 70% balance before shipment.
We also accept an irrevocable letter of credit (LC) at sight.
Production will begin once we receive the advance payment. When the machine is ready, we will send you pictures. After receiving the balance payment, we will proceed with the shipment.
Q8: Are you a manufacturer or a trading company?
A8: We are a combined manufacturing and trading company, specializing in the innovative development and production of machine tools, with extensive experience in global exports. We warmly welcome you to visit our factory.
Q9: Can you provide OEM services?
A9: Absolutely. We are happy to create a customized plan based on your requirements and offer the best service to meet your needs.
Q10: How can we receive training for the machines?
A10: You can send your team to our factory for free training, or we can arrange for one of our engineers to travel to your location for on-site training.

---
