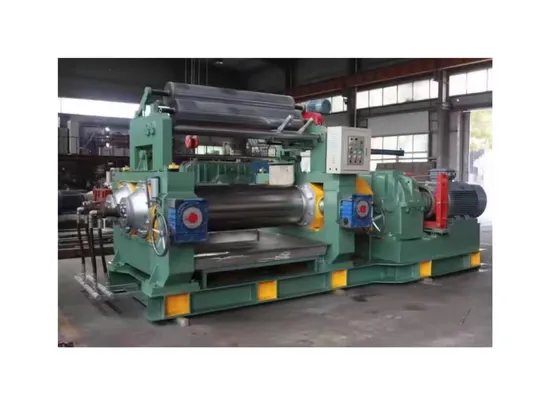

Rolling Bearing Bush Two Roll Rubber Mixing Mill Machine

Product Description

Ball Bearing Bush Two Roll Rubber Mixing Mill Machine
Specifications:
1.power :90kw
2.Roll length:1530
3.4.max.nip:15mm
4.all type can supply
5.100% original
XK-560 rubber mixing mill/two roll mixing mill:

This type is a large mixing mill with hardened gear reducer.
1.The mainpart of the Xk-560adopt :hard tooth surface reducer,roll and bearings are well-known brand products in domestic and abroade ,the main electric parts such as PLC ect adopt famous brand products in domestic and abroad.
2.The roller adopts cold hard cast iron LTG-H,the surface rigidity is HS 68-75.
3.The front roll speed can adjust ,and it impact the capacity driectly.
4.Gear technology :low noise , long operating life.

Type	Xk-160	Xk-250	Xk-300	Xk-400	Xk-450	Xk-560	Xk-660
Working diameter of rolls(mm)	160	250	300	400	450	560	660
Working length of rolls(mm)	320	620	750	1000	1200	1530	2130
Front roll surface speed(m/min)	8.95	14.1	15.1	18.65	24.26	27.72	28.6
Friction ratio	1:1.35	1:1.17	1:1.27	1:1.27	1:1.27	1:1.2	1:1.24
Max.nip(mm)	4.5	8	8	10	15	15	15
Capacity per.batch(kg)	1-2	8-15	15-20	18-35	25-50	35-50	165
Motor power (kw)	5.5	18.5	22	37	55	90	245
Overall dimension(mm	1380*860 *1320	3400*1500 *1800	3580*1550 *1695	4350*1850 *1785	5200*2380 *1840	5845*2284 *1978	7465*3662 *2080

Structure features:
1.The rollers are made of vanadiumtitanium alloy chilled castiron.The surface is hard and wearable.The internal cavity is processed for a more even temperature on roller surface.
2.The machine is designed with an overload protection device to prevent the main parts from damage due to overload
3.The machine is designed with an emergency brake .In case of emergency,pull the rod to stop the machine.It is safe and reliable.
4.The driving system is designed with NGW planetary hardened-gear speed reducer of dual-output hardened-gear speed reducer,featuring compact structure,low noise,high efficiency and long service life
5.the machine has an integrated base for easier installation.
