Product Details
Product Description
Product Description
| Name: | Repair Clamp | Material: | SS 304 |
| Pressure: | 0.8-2.5 Mpa | Liner: | EPDM /NBR |
| Type: | MF-L | Size: | DN32-DN500 |
| High Light: | MF general Pipe Repair Clamp |
| SS304 Long Pipe Leak Repair Clamp |
| EPDM Pipe Repair Clamp |
Product Description

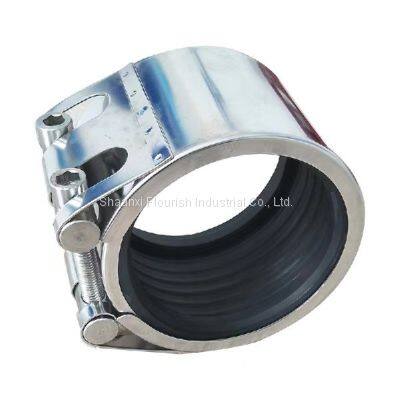

MF General Pipe Repair Clamp / SS304+EPDM Long Type Pipe Leak Repair Clamp
The pipeline repair clamp is mainly used for the rapid repair of pipeline leakage. It can quickly repair the aging and corroded pipeline trachoma and fracture without stopping the pressure and replacing the pipeline. It is easy to install and has high construction efficiency.
| Size | OD (mm) | Pipe OD (mm) | Length-L (mm) | W/Pressure |
| DN32 | 42 | 41-44 | 100 | 2.5Mpa |
| DN40 | 48.6 | 47-49 | 100 | 2.5Mpa |
| DN50 | 60 | 59-62 | 139 | 2.5Mpa |
| DN65 | 76 | 74-79 | 139 | 2.5Mpa |
| DN80 | 89 | 87-92 | 203 | 1.6Mpa |
| DN100 | 114 | 106-110 | 203 | 1.6Mpa |
| DN125 | 140 | 137-143 | 203 | 1.6Mpa |
| DN150 | 168 | 166-170 | 203 | 1.6Mpa |
| DN200 | 219 | 217-221 | 255 | 1.2Mpa |
| DN250 | 273 | 271-275 | 255 | 1.2Mpa |
| DN300 | 325 | 323-327 | 255 | 1Mpa |
| DN350 | 377 | 375-381 | 255 | 1Mpa |
| DN400 | 426 | 424-428 | 255 | 0.8Mpa |
| DN450 | 480 | 476-484 | 255 | 0.8Mpa |
| DN500 | 530 | 526-534 | 255 | 0.8Mpa |
The pipe clamp has a strong general newness, it can be applied to all kinds of metal pipes It can be used for quick connection of various metal pipes or metal pipes with no special requirements on wall thickness and end face. The product can replace flanges or welding and other cumbersome connection methods, and can solve different pipe diameter, axial displacement, angular deviation and interconnection of different pipes without the need for special tools. No special tools are required for the construction and operation.
>>
