DR9074-Triband QCN9024 4x4 MU-MIMO wifi6E 11ax 2.4G&5G&6G

Product Description

Product Description
sales@wallystech.com
Features
■ Qualcomm Atheros QCN9024
■ Maxim 23 dBm per chain,up to 4804Mbps
■ Data Rateup to 4949Mbps
■ Support Tri Band 2.4GHz&5GHz&6GHz 4x4 WiFi 6E (802.11ax)
■ 4 spatial streams (4SS)
■ M.2 E Key Interface
■ PCI Express 3 .0 Interface
Applications
■ Security Surveillance
■ Commercial radio coverage
■ Hotel Wireless application
■ Forest fire protection engineering
■ Country coverage
■ Some special scene application
Product Description

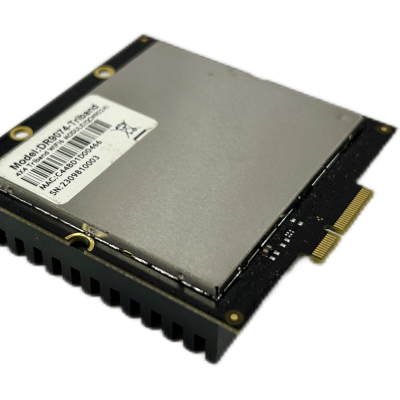

DR9074-Triband based on QCN9024 Chipset is an enterprise wireless module integrated with 4x4 MU-MIMO Dual Band Wireless Module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment.

Absolute Maximum Rating

Parameter	Rating	Unit
Operating Temperature Range	-20 to 70	ºC
Storage Temperature Range	-40 to 90	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%

Hardware Specifications

Symbol	Parameter
Chipset	Qualcomm Atheros QCN9024
WLAN Host Interface	PCI Express 3.0 Interface
System Memory	2Mbit serial I²C bus EEPROM
Standard Operating Voltage	3.3V
Operating Systems	QSDK
Host Interface	M.2 E Key
Antenna Cable / Port	4 x ufl Connectors,4T4R
Frequency Range	2.412GHz-2.472GHz & 5.18GHz-5.825GHz & 5.925GHz-7.125GHz
Data Rates	Maxim 23dBm per chain, up to 4804Mbps
Channel Spectrum Widths	Support 20/40/80/160MHz
Modulation Techniques	OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM;
Temperature Range	Operating: -20°C to 70°C, Storage: -40°C to 90°C
Humidity	Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Certification	TBD
Reference Design	PN02 .7
Power Consumption	TBD
Dimensions (WxHxD)	57mm x 63mm x 6mm

Radio TX RX Specifications(5.180GHz- 7.125GHz)

Mode	Data rate	TX power(dbm) (per chain)	TX power(dbm) (4 chains)	RX Sensitivity(dbm)	Tolerance
5Ghz 802.11a	6Mbps	20	26	-97	±2dB
	54Mbps	19	25	-82	±2dB
5Ghz 802.11n/ac VHT20	MCS0	20	26	-97	±2dB
	MCS7	17	23	-83	±2dB
	MCS8	16	22	-81	±2dB
5Ghz 802.11n/ac VHT40	MCS0	19	25	-95	±2dB
	MCS7	17	23	-80	±2dB
	MCS8	16	22	-77	±2dB
	MCS9	15	21	-74	±2dB
5Ghz 802.11n/ac VHT80	MCS0	19	25	-91	±2dB
	MCS7	17	23	-75	±2dB
	MCS8	16	22	-72	±2dB
	MCS9	15	21	-69	±2dB
5GHz 802.11ax HE20	MCS0	19	25	-96	±2dB
	MCS9	16	22	-77	±2dB
	MCS10	15	21	-74	±2dB
	MCS11	14	20	-71	±2dB
5GHz 802.11ax HE40	MCS0	19	25	-94	±2dB
	MCS9	16	22	-74	±2dB
	MCS10	15	21	-71	±2dB
	MCS11	14	20	-68	±2dB
5GHz 802.11ax HE80	MCS0	18	24	-91	±2dB
	MCS9	15	21	-71	±2dB
	MCS10	14	20	-69	±2dB
	MCS11	13	19	-66	±2dB
5GHz 802.11ax HE160	MCS0	18	24	-86	±2dB
	MCS9	13	19	-65	±2dB
	MCS10	12	18	-62	±2dB
	MCS11	11	17	-59	±2dB

Radio TX RX Specifications(2.412GHz-2.472GHz)

Mode	Data rate	TX power(dbm) (per chain)	TX power(dbm) (4 chains)	RX Sensitivity(dbm)	Tolerance
2.4Ghz 802.11b	1Mbps	20	26	-102	±2dB
	2Mbps	20	26	-99	±2dB
	5.5Mbps	20	26	-97	±2dB
	11Mbps	19	25	-95	±2dB
2.4Ghz 802.11g	6Mbps	20	26	-97	±2dB
	54Mbps	19	25	-83	±2dB
2.4Ghz 802.11n/ac VHT20	MCS0	20	26	-95	±2dB
	MCS7	17	23	-78	±2dB
2.4Ghz 802.11n/ac VHT40	MCS0	19	25	-93	±2dB
	MCS7	17	23	-73	±2dB
2.4Ghz 802.11ax HE20	MCS0	19	25	-95	±2dB
	MCS8	17	23	-77	±2dB
	MCS9	16	22	-75	±2dB
	MCS10	15	21	-72	±2dB
	MCS11	14	20	-69	±2dB
2.4Ghz 802.11ax HE40	MCS0	19	25	-92	±2dB
	MCS8	17	23	-75	±2dB
	MCS9	16	22	-72	±2dB
	MCS10	15	21	-69	±2dB
	MCS11	14	20	-66	±2dB

M.2 Pin Definitions

Pin No.	51Name	Pin No.	Name
1	GND	2	VDD3P3_ PCIE
3		4	VDD3P3_ PCIE
5	GND	6	PCIE_ LED0
7	TP19	8	GPIO46 WCI2 UART TXD PCIE
9		10	GPIO47_ WCI2_ UART_RXD_ PCIE
11		12
13		14
15	VDD_XPA_ PCIE	16	PCIE_ LED1
17	VDD_XPA_ PCIE	18	GND
19	VDD_XPA_ PCIE	20
21	VDD_XPA_ PCIE	22
23	VDD_XPA_ PCIE
33	GND	32
35	PCIE0 RX0 P	34
37	PCIE0_ RX0_ N	36
39	GND	38	MOD BT STS 2
41	PCIE0_TX0_ P	40	MOD_WL_ACT_2
43	PCIE0_TX0_ N	42	PINE_BT_ ACT_2
45	GND	44	MOD_ BT_ STS
47	PCIE0 REFCLK P	46	MOD WL ACT
49	PCIE0_ REFCLK_ N	48	PINE_ BT_ACT
51	GND	50
53	PCIE0_ CLKREQ _3 P3 _ N	52	PCIE0_ PERST_3P3
55	PCIE0_WAKE _3 P3_ N	54
57	GND	56
59	PCIE0 RX1 P	58
61	PCIE0_ RX1_ N	60
63	GND	62
65	PCIE0_TX1_ P	64
67	PCIE0_TX1_ N	66
69	GND	68
71		70
73		72	VDD3P3_ PCIE
75	GND	74	VDD3P3_ PCIE

---
