| Negotiable | 1 Set (MOQ) |
| Feature |

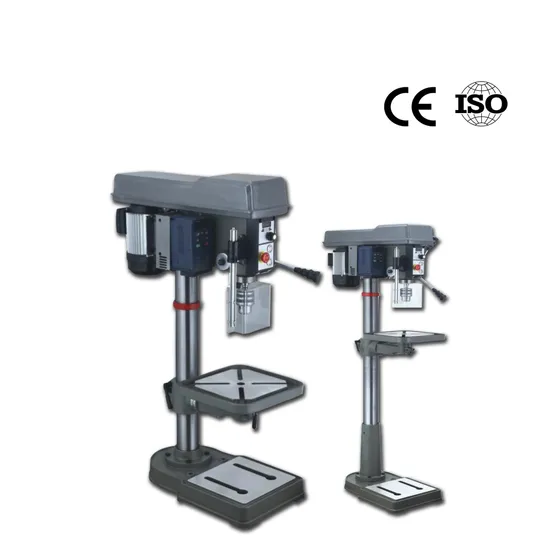

| 16mm (5/8'') max. chuck capacity. 430mm swing. 2 spindle speeds. Optional chuck guard and micro switch for CE requirement. |
| Model | DP43016F-VS |
| Drill capacity | 25mm |
| Chuck capacity | 16mm |
| Swing | 430mm |
| Distance from spindle to column | 215mm |
| Spindle taper | MT2 |
| Speed (50Hz) | 2 (0-700/0-3000rpm) |
| Spindle travel | 80mm |
| Column diameter | 80mm |
| Max. distance from spindle to table | 685mm |
| Max. distance from spindle to base | 1175mm |
| Base size | 545x330mm |
| Table size | 315x315mm |
| Table tilt | Yes -45/+45° |
| CE chuck guard | Yes |
| LED light | Yes |
| Laser light | Yes |
| Converter (vector control) | Yes |
| Motor (w)/S1 | 1100W |
| Height | 1630mm |
| N.W./G.W. | 91/96kg |
| Packing size | 1410x540x310mm |
| Quantity for 20GP | 112pcs |
| Standard Accessories | Optional Accessories |
| Drill chuck | Copper motor |
| Wrench set | Chuck guard |
| Aluminium motor | Emergency stop |
| Keyless drill chuck | |
| Vice |
