LAN Cable Cat5e CAT6 UTP FTP SFTP Twisted Pair 1000FT 305m Network Internet Ethernet Cheap Price in Stock

US$11.00 100 Boxes (MOQ)

Basic Info.

Model NO.

CAT5E

Cover Material

PVC/LSZH/etc

Type

CAT6

Material Shape

Round Wire

Conductor Type

Solid

Wire Core Material

Bare Copper Wire

Certification

CE, ISO, RoHS, CCC, VDE, UL, Atanel

Model

Cat5e, CAT6, CAT6A, Cat7, Cat8

Brand

Wayin

Lead Time

7 Days

Conductor Diamater

0.5±0.01mm

Insulation Material

HDPE

Insulation Diameter

0.88±0.05mm

Cable Diameter

4.80±0.30mm

Rip Cord

Nylon

Transport Package

Box (305m)

Specification

305M/500M/1000M

Trademark

OEM

Origin

Ningbo, China

HS Code

8544491100

Production Capacity

800000 Boxes/Year

Product Description

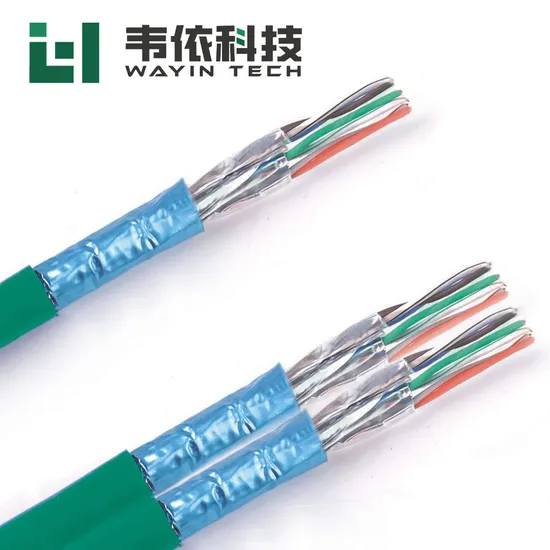

CAT 5E UTP/FTP/SFTP Cable
Standards
UL Subject 444, ANSI/TIA 568C.2, ANSI/TIA 568.2-D, ISO / IEC 11801, IEC 61156-5, YD/T1019-2013
Application
100 BASE-Tc, 100 BASE-TX, 1000 BASE-T, 1000 BASE-TX, 155 Mbps ATM, 100VG-AnyLAN
Mechanical Characteristics

Operating Temperature	-20ºC~75ºC
Maximum Pulling Force	110N
Minimum Bending Radius	4 X O.D.
Flame Test	PVC: CMX/CMH/CM/CMG/CMR/CMP LSZH: CPR-Dca/Eca/Fca
