Competitive Price High Quality Coal Crusher for Sale Hammer Type

Product Description

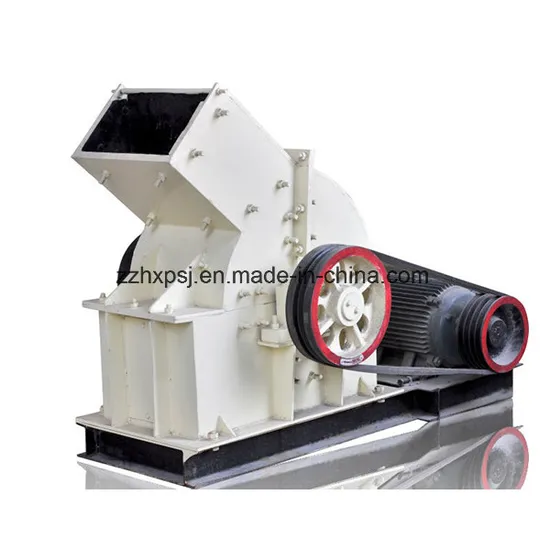

Competitive Price High Quality Coal Crusher For Sale Hammer Type
This series of hammer crusher,hammer mill crusher is applicable for crushing brittle minerals, such as coal, salt, plaster, alum, brick, tile and limestone with compression strength no more than 100mpa and humidity no more than 15%. The hammer crusher crushes by the collisions between high-speed hammer and materials. The PC hammer crusher,hammer mill crusher is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building and petroleum & chemical industries.
Hammer crusher working principle
The motor drives the rotor rotates of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.
Hammer crusher features:
hammer mill crusher has such features as compact structure, reasonable structure, convenient installation and maintenance and simple and easy operation, and it has high adaptability to cement production process and can save arrangement space.
Hammer mill crusher main models and technical parameters:

Model Specification	Feeding Size (mm)	Discharging Size (mm)	Capacity (m³/h)	Motor power (kw)	Total weight(t)	Dimensions (L×W×H)(mm)
PCΦ400×300	≤200	≤25	5-10	11	0.8	900×670×860
PCΦ600×400	≤250	≤30	10-22	22	2.26	1200×1050×1200
PCΦ800×600	≤250	≤35	18-40	55	4.8	1310×1180×1310
PCΦ1000×800	≤350	≤35	25-50	75	5.9	1600×1390×1575
PCΦ1000×1000	≤350	≤35	30-55	90	8	1800×1590×1775
PCΦ1200×1200	≤350	≤35	50-80	132-160	19.2	2060×1600×1890
PCΦ1400×1400	≤350	≤35	50-100	280	32	2365×1870×2220
PCΦ1600×1600	≤350	≤35	100-150	480	37.5	3050×2850×2800

Hammer mill crusher output size :( the final size can be adjustable via the discharge grid gap )

Hammer crusher from stock with competitive price :
Q: For providing you the suitable quotation we need to know the following information:
A: 1.What is the raw material of the stone ? is it riverstone,mineral ore ,or toher stones ,rock ?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Related product : heavy duty hammer crusher for primary crushing for big feeding stone size :
