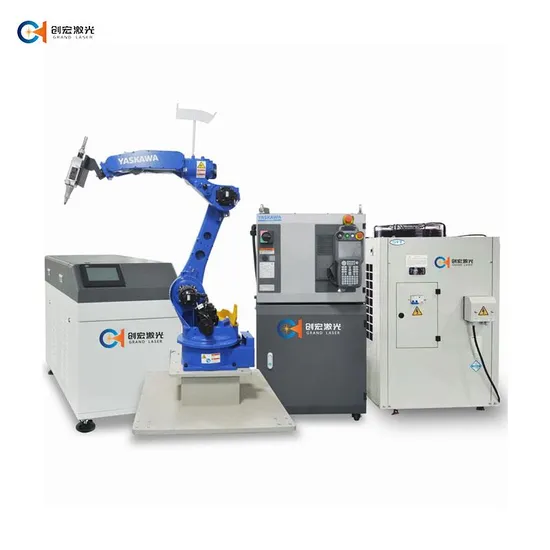

3000W Six-Axis Industrial Robot Laser Metal Aluminum Welding Machine Gp25 Intelligent Tracking Automatic Wire Feed Electrical Cabinet Hardware Welding Welder

Product Description

Product Parameters

Technical specification	1500W, 2000W, 3000W, 6000W
Optical maser wavelength	1080nm±5nm
Fiber output quantity	Route 1
Fiber length	15M
Depth of field	6mm stainless steel
	5mm aluminium alloy
Voltage input	AC380V+10%/3P+PE
Overall power	21.5KW
Type of cooling	Water cooling
Optical fiber type	QBH
Fiber diameter	50um
Radius of motion	1730mm
Automatic wire feed	0.8-1.6mm stainless steel/aluminium alloy
orientation range	55mm

Serial Number	Category	Details
1	depth of fusion	Strong penetration, large depth to width ratio
2	weld width	Narrower than argon arc welding, the beam is about 0.4mm. It can reach 0-5mm after swinging
3	deformation	The heat affected zone is small and the deformation of full welding is minimal
4	surface effect	The heat affected zone is small and the deformation of full welding is minimal
5	welding quality	High quality, can reduce the optimized base material impurities The tensile strength is 1.2 times that of the base material, and the brittleness is improved
6	welding surroundings	Less smoke, less welding slag
7	welding speed	Fast speed, normal use speed of 20- 40 mm/s

Detailed Photos
Product Description
PRODUCT DESCRIPTION

1. Robot laser welding machine can complete any space trajectory, any posture movement. Stable and reliable action, long life, fast movement, high positioning accuracy, high reduplication accuracy.
2. The equipment humanized operation, simple and easy to learn, do not need professional welders, can achieve "turnkey" project.
3. Efficient and stable maintenance free, can be 24 hours uninterrupted work, instead of manual.
4. Equipped with weld tracking function and wire feeding function, perfectly solve the problem of poor workpiece consistency, wide weld affect welding.



Operation cautions
OPERATION CAUTIONS

1. Safety protection:
Operators should wear professional laser protective glasses to prevent laser damage to the eyes/Set up protective barriers to prevent the impact of laser radiation on surrounding personnel and equipment.
2. Parameter setting:
Strictly follow the operation procedures to control welding parameters, such as laser power, welding speed, focal length, etc., to ensure welding quality.
3. Process monitoring:
During the welding process, do not directly observe the laser beam, and do not expose any part of the body to the laser irradiation range.


DAILY MAINTENANCE

1. Daily cleaning
Regularly clean the outside of the robot, including the robot arm, control cabinet, power cord, etc., to prevent debris and dust accumulation.
2. Component inspection and replacement
Regularly check the parts of the robot, such as guide rails, motors, etc. If the parts are found to be worn or damaged, they should be replaced in time to ensure the accuracy and stability of the robot.
3. Replacement of wearing parts
Such as conductive nozzle, wire feeder, cable and other wearing parts, should be replaced regularly according to the use situation to avoid affecting the welding quality.
4. Lubrication and adjustment
Periodically fill the key parts of the robot with lubricating oil to keep the movement of the robot smooth and reduce wear/Regularly check the trajectory and accuracy of the robot.

Welding samples
Certifications
Exhibition photos
Packaging & Shipping

---
