Basic Info.
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Spindle Speed Range
8000/10000/12000rpm
Rapid Moving Speed
36m/Min
Tool Magazine
Umbrella Type 12t/Arm Type 16t
Positioning Precision
±0.005mm
Repeatable Positioning Precision
±0.003mm
Overall Dimension
1830×1870×2120mm
Transport Package
Wooden Case
Specification
Table size: 800*320mm
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

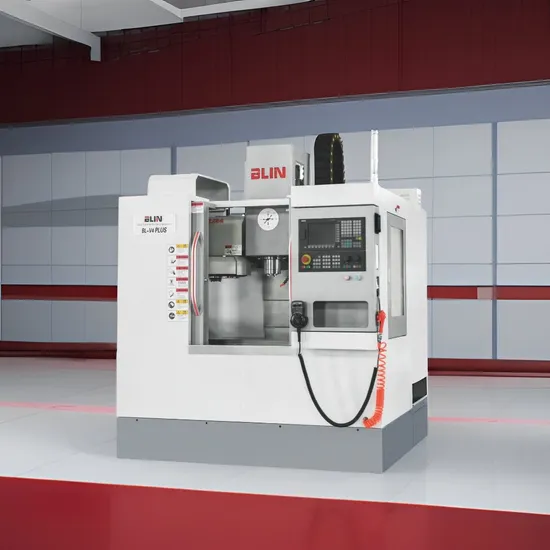

Product Description
-3 axes adopt high precision linear guideway
-Designed by GERMAN engineer
-Whole production process accord to TAIWANESE standard
-Chips outlet set at the back of machine
-Most parts adopt GERMAN/JAPANESE/TAIWANESE brand
-High speed, high precision, long using lifespan
-Adopt HT300 high class cast iron,after aging treatment and FEA analysis
-Bridge shape column, high rigidity, high stability
-3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching,pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision
Details:
| Item | Specification | Unit | BL-V4 PLUS |
| Worktable | Table size | mm | 800×320 |
| Table max. loading | kg | 200 |
| T slot(NO./width/gap) | mm | 3/14/100 |
| Travel | X/Y/Z axes | mm | 450/300/480 |
| Spindle | Distance from spindle nose to table surface | mm | 105~585 |
| Distance from spindle center to column surface | mm | 375 |
| Spindle type | mm | BT40/Φ120 7:24 |
| Spindle motor | kw | 3.7(option:5.5kw) |
| Spindle speed | rpm | Belt-drive: 8000/10000
Direct-drive: 12000 |
| Feeding axes | X,Y,Z axes ball screw O.D./pitch | mm | 32/12 |
| X,Y,Z axes linear guideway width | mm | 30 |
| X/Y/Z axes motor | Nm | 6/6/11(SIEMENS 808D) |
| Cutting feed speed | m/min | 12 |
| X/Y/Z axes rapid moving speed | m/min | 36/36/24 |
| Positioning precision | mm | ±0.005 |
| Repeatable positioning precision | mm | ±0.003 |
| Tool magazine | Tool magazine | / | Umbrella type 12T/Arm type 16T |
| Max. tool weight | kg | 8(Arm type 16T) |
| Max. tool length | mm | 220(Arm type 16T) |
| Max. tool dia.(fully loaded) | mm | 78(Arm type 16T) |
| Max. tool dia.(no adjacent) | mm | 120(Arm type 16T) |
| Others | Overall dimension(L×W×H) | mm | 1830×1870×2120 |
| Weight | kg | 2400 |
Main parts list:
| Item | Brand |
| Spindle bearing | JAPAN-NSK |
| Ball screw bearing | TAIWAN-TPI |
| Ball screw | JAPAN-THK/TAIWAN-HIWIN |
| Linear guideway | JAPAN-THK/TAIWAN-HIWIN |
| Spindle unit | TAIWAN-VYU CHEN |
| Tool magazine | TAIWAN-OKADA |
| Booster cylinder | TAIWAN-HAO CHENG |
| Lubrication pump | TAIWAN-BEISUN |
| Power switch | TAIWAN-MEANWELL |
| Pneumatic parts | TAIWAN-AIRTAC |
| Electric parts | FRANCE-SCHNEIDER |
Standard configuration: - SIEMENS 808D ADVANCED CNC Controller
-12T Umbrella type tool magazine
Optional configuration: -SIEMENS 828D/FANUC 0I MF CNC Controller
-16T Arm type tool magazine
-4th axes rotary table
Other models choice:
Our machines range:
About us:
>>
