Hydraulic Hoof Trimming Chute Factory Direct Sales

Product Description

Product Introduction

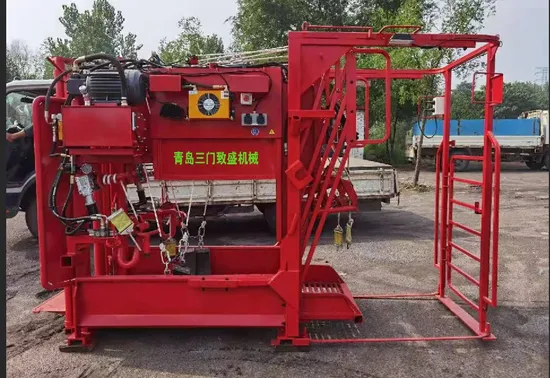

Where quick and effective hoof trimming is required, the hoof trimming crush from Sanmen ALL-win is the ideal solution for every hoof trimmer. Its operational reliability and well-established construction make it one of the best crushes in the world.
The hoof trimming crush not only makes hoof trimming simple, but also can be used for cattle surgery, breeding, caesarean section, rectal examination and other purposes. The hoof trimming crush is convenient and saves manpower, so that the probability of cattle being eliminated due to ungulate disease becomes zero.
The hydraulic hoof trimming crush has a fully hydraulic control of all functions and is well known for its effective and ergonomic hoof fixation. To avoid injuries to the cattle or cattle, all hydraulic functions are damped in the hydraulic pressure.
Product Composition The hydraulic automatic balance system of abdominal sling system can automatically dispatch the center of cattle. 2The automatic recoil system of the front door switch hydraulic system is used to control the front door of the equipment to be closed in time to prevent cattle from running out of the crush. The hydraulic system of the rear door closes the opening and closing automatic recoil system to avoid people being kicked by cattle and feces spraying. Front foot winch (2), rear foot winch (2) hydraulic automatic recoil system, which can maintain constant torque. The front base plate of cattle's hoof can be rotated by 90 degrees quantitatively (one-way). The rear base plate of the cattle's hoof can be rotated by 90 degrees (two-way rotation). Detailed pictures
Front Door Rear Door
Abdominal sling lighting
Automatic recoil system of front door Power distribution box

Internal description of distribution box
220V power switch
380V power switch
Leakage protector
Phase loss and leakage protection
24V control power supply

Product Parameters

Overall dimension	3300*1520*2250mm	Pump station power	4kw Continuous operation,Insulation class E
Hydraulic oil cooling system	220v,30W	Lighting	24v-5w*4 per LED
Equipment total power	4.5kw,Three phase four wire	Equipment weight	1700kg
Hydraulic system Working pressure	12MP2	Reducer tension	500-450kg

Product Display
Team
Q&A
Q: Are you a manufacturer or a trading company?
A:We are a manufacturing and trading combo in Qingdao China, with more than 7 years experience, 86,000sqm workshop and 300 employees. Welcome any spot investigation or real-time video link anytime.
Q: How do you control the products quality?
A:Our machines are authenticated by Ministry of Agriculture and Rural Affairs of PRC. We set independent Quality Control Department to do sample inspection, part inspection, trial running and pre-shipment inspection.
Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q: What's the delivery time?
A: According to the order quantity, small order usually need 7-15 days, big order need negotiation.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>5000USD, 30% T/T in advance ,balance pay after ship goods in one week

---
