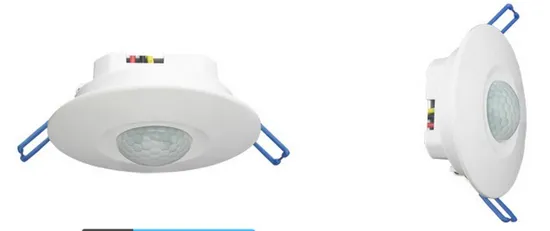

The Outdoor Light Infrared Motion Detector Switch Sensor (HTW-L727)

Product Description

Banner
Product Description The Outdoor Light Infrared Motion Detector Switch Sensor (HTW-L727)
General
The Outdoor Light Infrared Motion Detector Switch Sensor(HTW-L727) with high stability. It based on infrared automatic control technology, when people enter the induces scope, the special-purpose sensor surveys the mutative infrared spectrum of human body, then the switch automatically connect upload equipment, until detecting people not in the induction scope and automatically shut-off timely.


Features
>>Bipolarity design: Similar with ordinary wall switch (three connections), load capacity upto1000W.
>>Completelyautomatic induction: The switch automatically connect upload equipment, until detecting people not in the induction scope and automatically shut-off timely.
>>High-performanced switch relay: Connection load strength, load capacity upto1000W, switches upto 100,000 times.
>>Delay time adjustable:16 - 350S
>>Low power consumption:Switch own power loss<0.016W/h (year consumes electricity< 0.14 kwh).
>>Anti-radar function: Lightning protection components built inside.

Electrical Parameter

Induction way Passive Working voltage AC110V or AC240V(50Hz/60Hz) Or 24Vac or Others Optional Induction principle Human body Infrared Self power consumption <0.016W/h Induction distance 7 meters Loading capacity Inductive 500W Resistance 1000W Induction angle 140 degrees coning angles Loading Equipment Various Lux range 5LUX-500LUX (adjustable) Ambient temperature -20ºC-+50ºC

Installation

Locator-105:16-350s, Default setting-short-16s; Other Delay Time Could Be Customized
Locator-204: 5LUX-500LUX, Default setting-short-5LUX

certifiates
Factory Show
