Water Bottle Handle Plastic Injection Mould/Molding Machine 80ton Manufacturer

Product Description

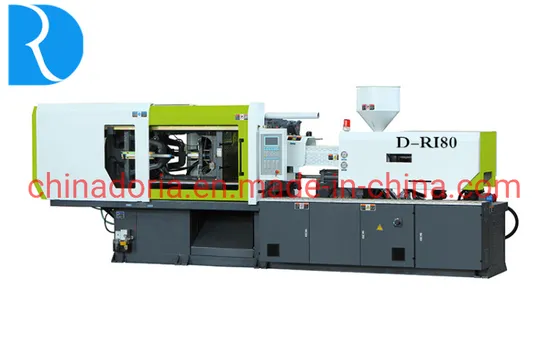

Specification of DR-I80 plastic Injection moulding machine
1. Product details:
2. Technical data of D-RI80

Model Item	D-RI80
Screw diameter(mm)	35
Injection pressure(Mpa)	170
Shot weight(PS) (g)	100
Screw L/D ratio	20:5:1
Screw stroke (mm)	135
Screw speed(r.p.m)	0-200
Injection rate (cm3/s)	90
Plasticizing capacity(g/s)	14
Clamping stroke(tons)	80
Mould clamping stroke (mm)	300
Max. daylight opening (mm)	650
Mould thickness (Min.-Max.) (mm)	130-350
Space between tie-bars (mm)	350*350
Hydraulic ejection force (tons)	2.7
Hydraulic ejector stroke (mm)	100
Max. pump pressure(Mpa)	14
Motor power(KW)	9
Heater power(KW)	6
Temperature control zones	3+1
Tank capacity (L)	180
Machine dimension(L*W*H)	3800mm*1200mm*1700mm
Machine weight(ton)	3

We are the leading trader of New Plastic Injection Moulding Machine 80Ton. This product is produced with the use of high-grade raw material with advanced techno machinery under the guidance of experienced engineers, keeping in mind its application area. It is provided with suction line and return line filtration. These products are highly demanded by our clients in market for their silent features.
Features:
Noise-free machine operation
Long operational life
Low maintenance
3. CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division, a multi-functional automatic fault detection, alarm system, certificates 99 mold of processing procedures, with remote control interface. System is of high stability and responsiveness. System uses color LCD, man made interface for easy operation and with a number of peripheral interfaces.

4. HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.
5. Pictures workshop of machine:
6. Warehouse of machine:
6. Frequently Asked Questions:
Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or inform us by email, so that we will regard your inquiry in priority.
Q: What's the warranty of the machine?
A: One year.
Q: What's the delivery of the machine?
A: 40-45days.
Q: Could you tell us how to operate the machine?
A: We will send the installation video and detail instruction manual to you. And we also have set the correct data of PLC for the machine.
About us:
7. About us:
Plastic moulds manufacture:
PET preform moulds
Semi-automatic bottle moulds
Automatic bottle moulds
Commodity moulds
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Welcome everyone to visit us; we hope we will have good chance to cooperate!
8. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China

---
