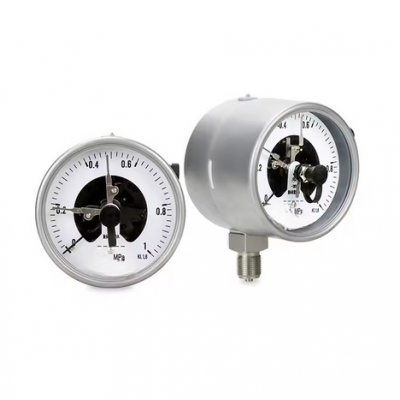

All stainless steel (seismic resistant) electric contact pressure gauge
application:
The product is suitable for measuring the pressure and vacuum of gas and liquid media that are non-viscous, difficult to condense, and slightly corrosive. It is also used to control and regulate related industrial production processes, monitor equipment, and control circuit switching. Widely used in petroleum, chemical industry, metallurgy, electric power, food, medicine, environmental protection, machinery and other industries.
Process connection: M20x1.5, 1/2”NPT, G1/2
Technical parameters can be customized according to user requirements
Pressure sensing element:
10 MPa spiral tube
Nominal diameter: Ф100mm, Ф150mm
Accuracy level:
Indication accuracy
Ф100mm grade 1.0, grade 1.6, grade 2.5
Ф150mm grade 1.0, grade 1.6
Setting accuracy level 4
Measuring range:-0.1~0~0.1…100MPa
Instrument dial: aluminum alloy, black text on white background
Or other equivalent pressure vacuum range
Glass: organic glass (safety glass optional)
Overvoltage capability: full scale x130%
Ambient temperature: -40℃~70℃
Medium temperature: -40℃~100℃
When the temperature of the measuring system deviates from 20+5℃. Its setting
The change of fixed error is not more than 0.02/℃
Wetted material: 316L (or Monel optional)
Case material: 304SS (or 316L optional)
Movement material: 304SS
Instrument pointer: aluminum alloy, black
Setting pointer: upper and lower limits are red and green, others are red
Protection level: IP54, IP65
Contact switch:
YXH magnetic assist contact
No control unit and additional power supply required
Can directly switch 220V, 1A load
Can be equipped with up to 4 sets of contact switches
Stainless steel shockproof electric contact pressure gauge
>>
