PLC-600 Hot Sale Bridge Cutter

Product Description

Product Description

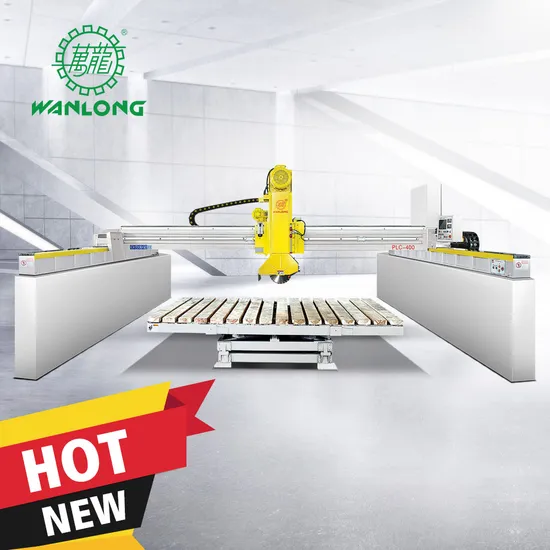

PLC-400/600/700 Laser Bridge Cutting Machine
The machine is for slab processing, which adopts PLC Control System, Imported Frequency converter, Precise Signing Laser etc for automatic function and guarantee its precise and stable cutting.
Technical Parameters

Model	Unit	PLC-400	PLC-600	PLC-700
Max. diameter of blades	mm	400	600	700
Main motor power	KW	15	15	18.5
Table dimension	mm	3200x2000	3200x2000	3200x2000
Table tilting degree	n°	85	85	85
Table rotating degree	n°	90/360	90/360	90/360
Overall dimensions(L x W x H)	mm	6000x4800x2800	6000x4800x2800	6000x5500x3360
Maximum cutting size	Kg	3200x2000x80	3200x2000x180	3200x2000x230

Configuration 1. SIEMENS main motor with stronger seats.
2. PANASONIC PLC and inverter.
3. Positioning device, laser etc.
4. Strong cast iron HT200.
5. Touch sensitive Panel Easy for worker to operate.
6. 380-400sqm/ 10hrs for medium hard granite with 10-20mm thicknes.
Feature - Guide rail is oil impregnated and protected from water and dust
- Vertical movement of machine head is driven by hydraulic system, and the stroke is adjustable
- Horizontal movement of the crossbeam is driven by SIEMENS motor equipped with OMRON rotary encoder by which the precision is guaranteed
- Worktable can tilt 0-85°, and rotate 0-360°
