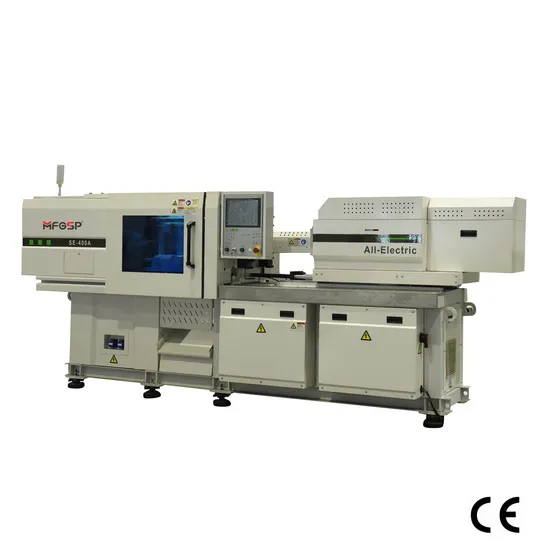

SE4500V Environment friendly Efficiency Precision Energy-saving Intelligence All Electric Injection Molding Machine

Product Description

All Electric Injection Molding Machine

Performance characteristic:
Zero-resistance clamping injection guider structure, heavy loaded guider device supported by linear track, better wear resistance, lower friction and more smooth operation. Optimize mold structure, tie bar no touch with moving platen,no lubrication. The system has high rigidity and strength, guarantee the accuracy of platen parallel excellently.

T-slot & screw fixation platen embedded moldlocating ring design, high-standard clampling system reduces mold loss and makes more easy mold installation.
Fast and smooth mold movement, high torque, less resistance. Clamping servo motorconnects ball screw, flexible operation and simply maintenance. High- quailty belt, warranty 10 years;superior rotating wheel,low inertia.
Top responsibility servo motor and high toreque ball screw is key element, origin Japan technology to keep advantage leading ir the word, precise for mold movement.
Parameter:

MODEL			SE-4500V
CLAMP TONNAGE		kN	4500
SPACE BETWEEN Tl E-BARS		mm	880x855
PLATEN DIMENSION		mm	1300x1260
OPEN STROKE		mm	870
MOULD THICKNESS		mm	350-870
EJECTOR STROKE		mm	180
EJECTOR FORCE		kN	98
EJECTOR NUMBER			21
MACHINEWEIGHT		T	28.8
SCREW DIAMETER		mm	55	60	65	60	65	70	65	70	80
INJECTION CAPACITY		cm3	665	792	929	891	1045	1212	1128	1308	1709
INJECTION WEIGHT (PS]		g	605	720	846	810	951	1103	1027	1191	1555
PLASTICIZING CAPACITY (PS)		kg/h	206	226	252	226	252	290	252	290	320
SCREW SPEED		rpm	320			250			210
HEATER BAND			4+1			4+1			5+1
HE/JER POWER		kW	20.2			23.6			29.1
NOZZLE PRESSING FORCE		kN	39.2			58.8			65
STANDARD			1370			1790			2280
INJECTION SPEED		mm / s	160			160			160
INJETION RATE (PS)		cm3 /s	380	452	530	452	531	616	531	616	804
INJECTION PRESSURE		Mpa	214	180	153	211	180	155	215	185	140
		kgf/cm2	2183	1836	1561	2155	1836	1583	2193	1887	1428
MAX.INJECTION HOLD PRESSURE		Mpa	171	144	122	169	144	124	172	148	112
		kgf/cm2	1746	1469	1249	1724	1469	1266	1755	1510	1142
TOTAL POWER		kW	70.2			73.6			137
OPTION			1370H			1790H			-
INJECTION SPEED		mm / s	250			250			-
INJETION RATE (PS)		cm3 /s	593	706	828	706	830	963	-	-	-
INJECTION PRESSURE		Mpa	214	180	153	211	180	155	-	-	-
		kgf/cm2	2183	1836	1561	2155	1836	1583	-	-	-
MAX.INJECTION HOLD PRESSURE		Mpa	171	144	122	169	144	124	-	-	-
		kgf/cm2	1746	1469	1249	1724	1469	1266	-	-	-
TOTAL POWER		kW	100.2			104
We reserve the right to change specifications without prior notice.

OVERALL DIMENSIONS
PLATEN DIMENSIONS
Application:
The SE series of all-electric injection molding machine are more suitable for household appliance, medical,electronic optics, packaging,auto parts, and other industries with its advantages of high speed, high efficiency, high precision, energy saving and environment cleaning .

Related products:
After Sales Service
Debugging before shipping: Before shipping,all the lines will be strictly tested to ensure that customers use smoothly.
Installation at site: strict supervision for installation,commissioning and running.
Customers files establishment: detailed record on customers equipment information,and the replacement of spare parts are kept in profile for a long term save.
Regular visit system:after equipment installation and running,call to customers within one week,life-long follow-up service to the quality of products and services,to ensure that customers are worry-free.
Trouble shoot response time:establish professional sfter-sale service team,after breakdown happened,ensure engineers to provide solution within 24 hours,and solve the problem
Spare parts:Sufficiently supply,delivery in time
