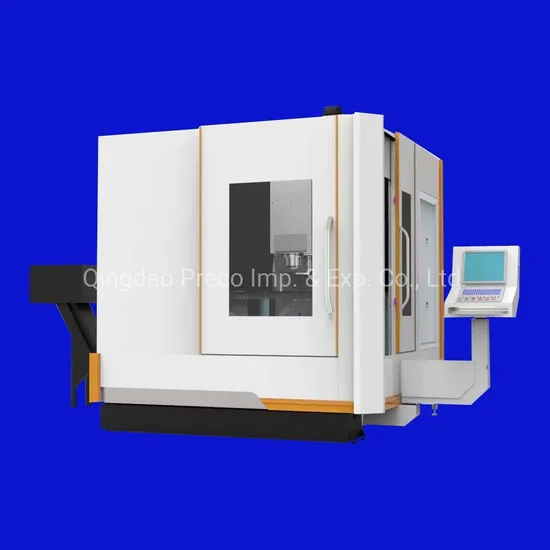

| US$19,999.00 | 1 Piece (MOQ) |
| specification | unit | FVC650 |
| table | ||
| table size | mm | Ø500 |
| T-slot(diems x spacing x number) | mm | 4-12×90° |
| max.load | Kg | horizon:300/tilt:200 |
| travel | ||
| X travel | mm | 820 |
| Y travel | mm | 520 |
| Z travel | mm | 460 |
| B travel | ° | -30~120 |
| C axistravel | ° | 360 |
| spindle nose to table surface distance | mm | 220-680 |
| spindle center to guideway surface | mm | 187 |
| linear guideway | ||
| linear guideway system | mm | X:45/2/4(roller) Y:45/2/4(roller) Z:45/2/4(roller) |
| spindle | ||
| spindle power(rated/peak) | Kw | 20/35 |
| spindle torque(rated/peak) | N•m | 35/70 |
| spindle speed(rated/peak) | rpm | 9000/20000 |
| spindle taper | HSK A63 | |
| spindle mandrel dia. | mm | 150 |
| feedrate | ||
| cutting feedrate | mm/min | 1~10000 |
| rapid feedrate | mm/min | 24000 |
| B/C rapid feedrate | RPM | 100/150 |
| acceleration | G | 0.8 |
| accuracy | ||
| X/Y/Z positioning accuracy | mm | 0.006 |
| B/C positioing accuracy | ″ | 10 |
| X/Y/Z repeatability | mm | 0.003 |
| B/C repeatability | ″ | 5 |
| motor | ||
| 5-axis servo motor | X/Y:1FK7084-3BC71-1RG1 Z:1FK7101-3BC71-1RH1 B:1FK7105 C:1FK7083 | |
| rated power | Kw | X:3.1,Y:3.1,Z:4.1,B:2.6,C:7.7 |
| rated torque | N•m | X:20,Y:20,Z:27,B:16*60,C:48*120 |
| ballscrew | ||
| ballscrew dia./pitch | mm | X:Φ45/08 Y:Φ45/08 Z:Φ45/08 |
| tool magazine | ||
| tool handle | / | HSK A63 |
| tool selection method | / | bi-direction random |
| tool max.allowance | / | chain type 40 tools |
| tool max.dia. | mm | Φ80 |
| max.tool length | mm | 300 |
| max.tool allowable weight | Kg | 8 |
| tool change time(T to T) | sec | 2.5(variable frequency/servo) |
| others | ||
| power supply | 3Ф380V,50/60HZ | |
| air demand | Kg/cm2 | 5.5~6.5 |
| machine weight | Kg | 6.5 |
| machine dimensions(L x W x H) | mm | |
| No. | part neame | brand | country | |
| 1 | mineral casting | NANO | China | |
| 2 | bearing for ballscrew | NSK / 3572 TAC | Japan/Germany | |
| 3 | ballscrew and guideway | HWIN/PMI | Taiwan | |
| 4 | built-in electric spindle | Cells,ABIG: 20KW/20000rpm/35Nm /HSK 63A | Taiwan | |
| 5 | lubrication system | Baotn | China | |
| 6 | chain type 40 tools | Sanjet and Okada | Taiwan | |
| 7 | rotary table position encoder | Renishaw/Heidenhain | UK/Germany | |
| 8 | 5-axis DD rotary table | Parkson | Taiwan | |
| 9 | coupling | KTR | Germany | |
