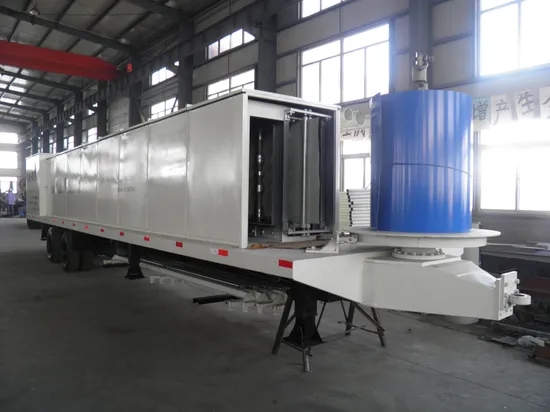

Bh Automatic Roll Forming Machine for Multi-Shape

Product Description

Feature of UBM:
1. Making more and different shapes.
2. PLC intelligent control, highly automated to get high efficiency.
3. Lower cost by saving raw material, project can be finished in short time.
4. Easy installation.
5. Inner space can be fully used.
6. Application of UBM building is more widespread.

Main Technical Specification:
Size : 11000mmX2200mmX2100mm(With double axles 8 tires)	Total Weight : About 10 Ton
Thickness of Bending Leaf : 10mm	Cutting Material : 12CrMoV, Heat treatment
Cutting type : Mechanical Cutting Device	Forming type: Roll-formed and length-set cutting.
Total motor power : 23.45KW Main Motor Power : 5.5KW Bending Power : 3.0KW+1.5KW Cutting Power : 3.0KW Hydraulic station power: 7.5KW Servo power: 0.75KW Seaming Power : 1.1KW+1.1KW
Material of rollers : 45# steel, quenched HRC 55~65 , plated with hard chrome.	Material of shafts : 45# steel, galvanized
Bearing : made in Harbin	Step of molding : 13+1
Width of steel sheet: Feeding width : 600mm Finished width : 305mm Utilization ratio: 50.8%
Rolling thickness: 0.6-1.5mm	Applicable Span : 4~28m
Working Speed : Straight Sheet : 15m/min Arch Sheet : 13m/min Seaming : 16m/min
Uncoiler: Coil Inner-diameter:450mm ~ 650mm, Fixed Coil Max width:600~620mm
Load:10Ton

Building shape
Building example
Our Company
Yingkou Bohai Machinery Equipment Manufature Co.,Ltd is professional manufacture of roll forming machine. We can provide design and instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied.
Certificate:
Delivery
FAQ
Q: Can you make the machine according to my design or photo type?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.
Q: Are you a factory or trading company?
A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!
Q: How do you guarantee the quality of the products?
A: Every section of our production has strict manufacture process, than professional inspectors check every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.
Q: What is your service?
A: We provide the technical support for whole life. Pre-sales service includes inquiry and design support and view our factory. After-sales service includes training how to instal the machine, training how to use the machine, and engineers available to service machinery overseas.
Payment
T/T( 30% by T/T in advance, the rest 70% to be paid by T/T after you inspect the machine in seller's factory before delivery )
Cooperate

Step 1: Tell us your requirements.

Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative.

Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

Step 4: Advanced payment and production.

Step 5: Factory examine goods/ rectify and reform to meet the requirements of contract.

Step 6: Balance payment and shipping.

Step 7: Handing shipping files to help clients get goods from transporter in time.

Step 8: Clients get goods and go into warranty time.

Step 9: Provide overseas service for clients.

---
