4" Hose Crimping Machine Composite Tube Press Processing Machinery in China

Product Description

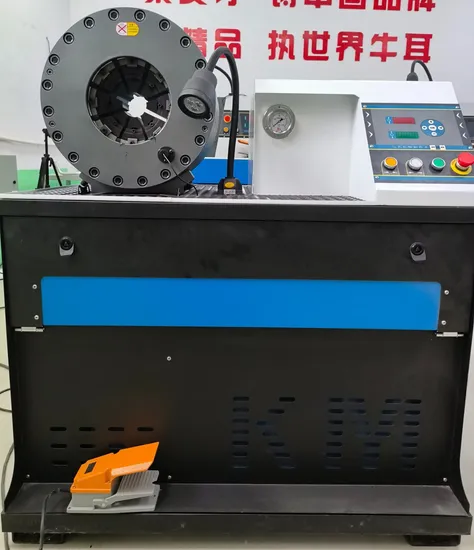

Technical Data Of KM-91D-2 Hydraulic Pipe Crimping Machine

Model NO.	KM-91D-2
Crimping range	1/4" - 4" IV
Swaging force	1490 ton
Standard voltage&motor	380V/5.5kW
Opening without dies	ø180mm
Opening	± 25mm
Open time	≤4S
Close time	≤22s
Oil tank	65L
Systematic pressure	30Mpa
No.of standard die sets	16 sets
Weight	537 kgs
Volume (L*W*H)	1050*700*1200(mm)

CNC processed machine head ensures the high precision performance and long service lifeDigital control system is easy and intelligent to operateThe heat emission hole is convenient for ventilation and heat dissipation, improving the working reliability of the machineDigital control system is easy and intelligent to operate
Advantages Of KM-91D-2 Hydraulic Hose Crimping Machine
1).Duplex conical surface, large crimping force;
2).More convenient with transitional dies;
3).New material for die base, to ensure its long service life;
4).New circuit, for more reliable crimping.
Applications Of Hydraulic Hose Crimping Machine KM-91M-2
1).Suitable for high precision pressing for low and high pressure hose diameter, starting from 1/8" to 4" internal hose pipe.
2).For oil pipeline, oil engineering maintaince.
3) Various of steel pipe and rebar
Hydraulic Hose Crimper why not choose Kangmai?
1). Kangmai hose crimper has approved CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason are like below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging or cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.

---
