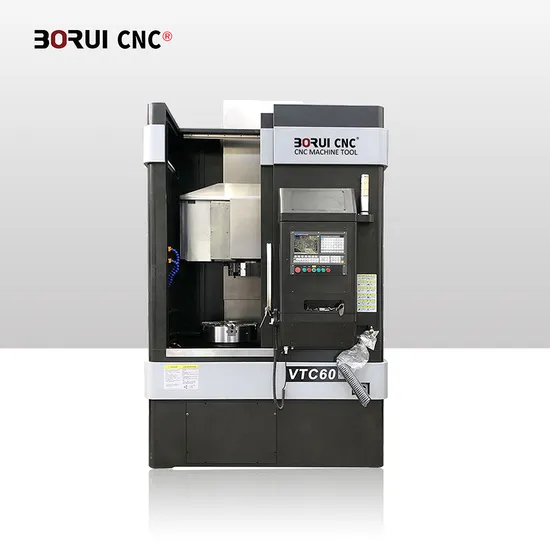

Vtc60 Torno CNC GSK CNC Alloy Wheel Diamond Cut Machine Vertical Lathe Machine Price

Product Description

VTC60 Auto Parts Processing Lathe Precision Turning Machining Brake Disc
Product Description
Product description::
VTC Vertical CNC lathe is an excellent product designed and produced by our company for many years on the basis of absorbing the advanced technology of similar machine tools at home and abroad. This series of machine tools is economical and efficient, and is the first choice for processing complex disk parts in automobile, industry and other kinds of machinery industries. This series of machine tools can process all kinds of short shaft and disc parts, can turn all kinds of thread, arc, and rotary body inside and outside surface, end face, groove. It is suitable for parts with large batch, high machining precision and high dimensional consistency. This series of machine tools is widely used in automobile industry at home and abroad, and is a kind of high quality, high precision, low cost and high efficiency machine tool.
Compared with the previous similar machine tools, it has the following advantages:
1. important parameters of machine tools, such as the maximum machining diameter of machine tools, two-axis fast moving speed and so on, are close to or larger than similar machine tools abroad.
2. machine tool has compact structure, smaller area, reasonable layout of each functional component, convenient operation and maintenance. 3. machine tool price is excellent and cheap, quite cost-effective. Suitable for small and medium-sized enterprises single or batch procurement, effectively reduce enterprise procurement and operating costs.
Product main technical parameters:

ITEM		VTC50	VTC60	VTC70	VTC80A	VTC100A
Travel	x-axis	500mm	450mm	700mm	670mm	870mm
	z-axis	500mm	650mm	700mm	900mm	900mm
Capacity	Max.swing dia.	Φ650mm	Φ650mm	Φ780mm	Φ1000mm	Φ1200mm
	Max.turning dia.	Φ500mm	φ600mm	Φ700mm	Φ800mm	Φ600mm
Spindlr	Spindle speed	80~1000rpm	100~1000rpm	100~800rpm	100~1000rpm	100~800rpm
	Spindle motor power	15kw	18.5Kw	22kW	22Kw	22Kw
	Dimension-Outside	φ130mm	φ160mm	φ160mm	φ180mm	Φ200mm
Chuck & automatic tool changer	Chuck type	Hydraulic chuck	Hydraulic chuck	Hydraulic chuck	Hydraulic chuck	Hydraulic chuck
	Dia.Chuck	Φ400	Φ500	Φ630	Φ630	Φ800
	Work Station	Horizontal 8 station	Horizontal 8 station	Horizontal 8 station	Horizontal 8 station	Horizontal 8 station
Slide way	x-axis slide way	2 pcs, 45mm wide	2 pcs, 45mm wide	2 pcs, 45mm wide	2 pcs, 45mm wide	2 pcs, 55mm wide
	z-axis slide way	2 pcs, 45mm wide	2 pcs, 55mm wide	2 pcs, 55mm wide	2 pcs, 55mm wide	2 pcs, 55mm wide
Ball screw	Ball screw accuracy	P3	C3	C3	C3	C3
	Ball screw diameter x.y.z	x:φ40mm	x:φ40	x:φ40	x:φ40	x:φ50
		z:φ40mm	z:φ50	z:φ50	z:φ50	z:φ50
	Lead	10mm	10mm	10mm	10mm	10mm
Control system	Spindle motor	15kw	18.5kw	22kw	22kw	22kw
	X zaxis motor	10NM	18NM	15NM	18NM	18NM
	Z zaxis motor	22NM	30NM	15NM	30NM	30NM
Accuracy	Repeat positioning	±0.005mm	0.008mm	0.008mm	0.008mm	±0.007mm
	Positioning	±0.01mm	0.008mm	0.01mm	0.008mm	±0.01mm
	Least input increment	0.001mm	0.001mm	0.001mm	0.001mm	0.001mm
Power require	Power source	3¢-AC 380V 50Hz±5%	3¢-AC 380V 50Hz±10%	3¢-AC 380V 50Hz±5%	3¢-AC 380V 50Hz±5%	3¢-AC 380V 50Hz±5%
Others	Cross weight	5000kg	6500kg	8000kg	10500kg	11000kg
	Packing dimensions	2100×2500×2750mm	2000×1950×3000mm	2200×2000×3250mm	2480×2200×3350mm	2600×2300×3450mm

Details Display
Company Profile
FAQ
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.4. What is your trade terms?A : FOB, CFR and CIF all acceptable.5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .6: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )

---
