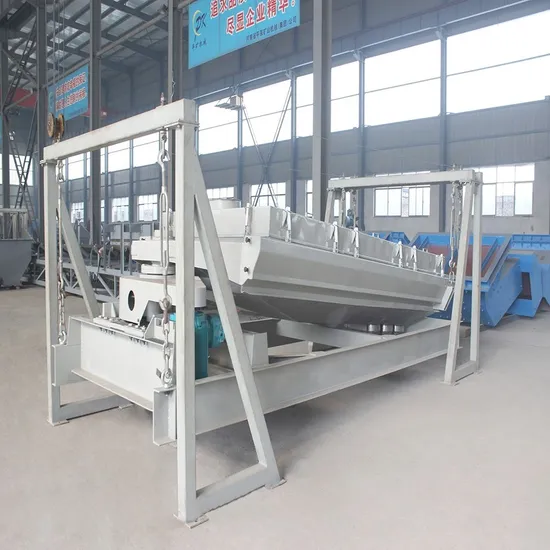

Food Grade Stainless Steel Paddy Gyratory Screen

Product Description

About Us Headquartered in Xinxiang City, Henan Province, China, domestic well-known screening and conveying equipment city, PK Machinery has enjoyed more than 50 steady years of successful growth, and now it has been widely acknowledged as a trustworthy and professional manufacturer in the field of bulk material handling equipment, including vibrating screen, vibrating feeder, belt conveyor, bucket elevator, screw conveyor, scraper chain conveyor and associated spare parts in complete specifications.
Product Description Food Grade Stainless Steel Paddy Gyratory Screen
Introduction
Gyratory screen is designed to provide precise and accurate sieving of material, it adopts eccentric mechanism which drives the material on the screen surface do uniform gyratory reciprocating swing motion,the materials are spread and stratified on the full screen surface, then the gyratory reciprocating motion gradually changes to an elliptical motion at the centre which is good for material sieving,a straight-line motion at the discharge end,the material movement track becomes short and then materials flow out of the outlet.Gyratory screener is widely used in chemical,fertilizer,metallurgical,ceramsite,refractory materials,grain, food, abrasives, mining and other industries in the sizing process of material accurate screening.
Advantages and Features
1.Automatic cleaning- Bouncing balls keep screen openings clean and maintain efficiency and capacity.
2.Screen long service life- No vertical component avoid the impact and damage of material to screen.
3.Full utilization of screen surface- Gyratory reciprocating motion ensures material constantly contact with screen surface.
4.Environmentally Friendly- Fully enclosed structure,no dust pollution,improve working conditions for operators as well.
5.Top-class design -Mature technology, easy installation and maintenance, convenient and quick screen replacement.
6.Customized order- multi- layer,different capacity and mesh size can be customized according to customer's demand.
7.Quick Screen Changes-Quick release device is provided to take down the net rack and replace the screen rapidly.
8.Various sieving solution- Gyratory screen allows separations with openings from 12mm to 325mm. Product Parameters Technical Parameterschina cereals rotex gyratory screen

Model	Screen Surface		Layer No.	Feeding Size	Amplitude (mm)	Frequency (r/min)	Power (kW)
	width	length
PXZS1224	1200mm	2400mm	1-4	<50mm	75-90	1450	5.5
PXZS1230	1200mm	3000mm	1-4	<50mm	75-90	1450	5.5
PXZS1236	1200mm	3600mm	1-4	<50mm	75-90	1450	5.5
PXZS1524	1500mm	2400mm	1-4	<50mm	75-90	1450	5.5
PXZS1530	1500mm	3000mm	1-4	<50mm	75-90	1450	5.5
PXZS1536	1500mm	3600mm	1-4	<50mm	75-90	1450	5.5
PXZS1830	1800mm	3000mm	1-4	<75mm	75-90	750	7.5
PXZS1836	1800mm	3600mm	1-4	<75mm	75-90	750	7.5
PXZS1840	1800mm	4000mm	1-4	<75mm	75-90	750	7.5
PXZS2036	2000mm	3600mm	1-4	<75mm	75-90	750	7.5
PXZS2040	2000mm	4000mm	1-4	<75mm	75-90	750	11
PXZS2050	2000mm	5000mm	1-4	<75mm	75-90	750	11

Note: the parameter above is just for reference,it can be customized by different requirment.
Selection Conditions

♦Material to be processed: _____	♦Max. granule size of the feeding material: _____mm
♦Handling capacity (Ps. It means the total	♦Layer number: ______
material capacity feeding from the inlet): _____t/h	♦Mesh size of each layer: _____mm
♦Bulk Density: _____t/m3	♦Particle distribution percentage:____________
♦Material temperature: _____ºC;	(please check the following example to help you
♦water content:____%	understand it.Supposing the layer number is 2
♦Material is corrosive or not: ____ (Ps. Yes or No)	and the aperture size of each layer is 10mm and 5mm,
♦Material is sticky or not: ____ (Ps. Yes or No)	then you will get 3 kinds of products: X,Y and Z.
♦Working environment is indoor or outdoor: _____	X≥10mm; 5mm≤ Y < 10mm; Z<5mm.
♦Working environment temperature: ______ ºC	We want to confirm the following information:
♦Upstream equipment (Ps. It means what kind of	1)The percentage of X in the whole material:_____%;
equipment is used to feed the material): _____	2)The percentage of Y in the whole material:_____%;
♦Downstream equipment (Ps. It means what kind of	3)The percentage of Z in the whole material:_____%;)
equipment is used to discharge the material): _____	♦Working power supply: _____V ______HZ
