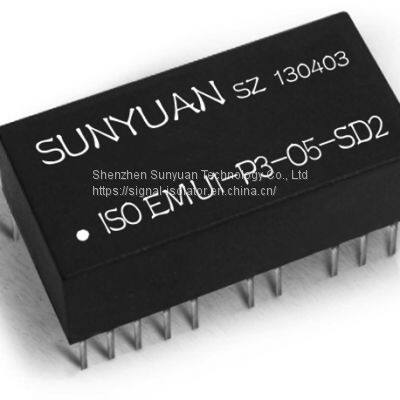

DC Current/Voltage Single Input Dual Output Isolated Amplifier IC
General characteristic:
Low cost, small size. Directly soldered on the PCB board mounted.SIP 16 anti- fire UL94V-0 package
Easy to use, no zero adjustment except external gain adjustment.
Full range with high linearity. (Non-linearity<0.2%)
Power / signal input / two-way signal output,isolation 3000VDC, four-port isolated.
Auxiliary power supply: 5V, 12V, 15V, 24V.
SIP-16 meets UL94V-0 flame retardant package.
0-75mV/0-5V/0-10V/0-±100mV/0-±10Vvoltage signal or 0-10mA/4-20mA/0-±20mA current signal isolation, amplifier and converter
Temperature range: -45~+85 ºC
Applications:
Divid and monitor the senor signal
Industrial area signal isolation, conversion, amplification and long-term transmission
4-20mA signal one in two out ground interference suppression
Analog signal ground interference suppression, isolation and collected of data.
Power monitoring, medical device isolation monitoring barrier
Detection of instrument, meter and sensor's signal transceiver
4-20mA/0-5V etc. signal isolation, distribution and transformation
Industrial site analog and digital signal to coexist monitoring and transmission
>>
