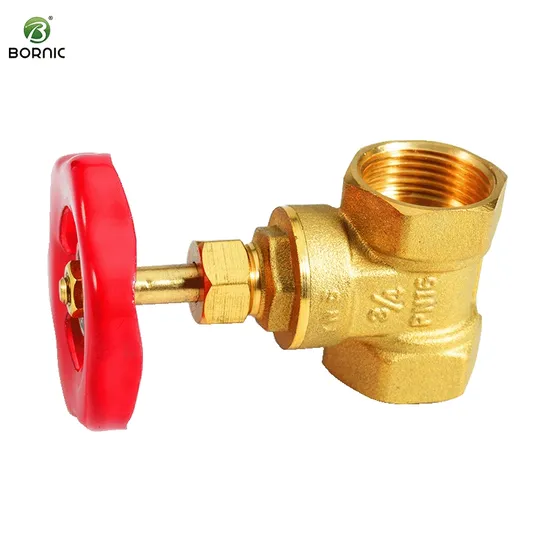

Brass Cw617n Gate Valve Non Rerurn Valve Durable NPT Water Control Female Thread Gate Water Valve

US$18.20-18.40 10 Pieces (MOQ)

Basic Info.

Type
Direct-acting
Material
Brass
Connection Form
Thread
Pressure
Low Pressure
Actuator
Manual
Seal Surface
Wedge Gate Valve
Thread Position of Valve Rod
Inside Gate Valve
Usage
Regulation, Safety, Emptying
Standard
GB
Application
Water Industrial Usage, Household Usage
Product Name
Gate Valve
Size
1/2′′--4′′
MOQ
10PCS
Color
Customized Color
Working Pressure
1.0-1.6MPa (10-25bar)
Transport Package
Carton and Pallet
Specification
1/2" 3/4" 1" 5/4" 3/2" 2"3"4"
Trademark
Bornic
Origin
China
HS Code
8481804090

Product Description

Application: Use in drinking water applications Size Range: 1/2" to 4" (DN15-DN100)
Material: Bronze (C83600,C84400,LG2,B62)
Technical specification:
Working Pressure: 2.0Mpa
Testing pressure: 0.8MPa by air
Working Medium: Water, Non-corrosive liquid, saturated steam
Working temperature: -20° C≤ T≤ 150 ° C
Thread Standard: ISO228
Data Details
DN SIZE L H D
ΦB
15 1/2" 42 69 53 14
20 3/4" 46 75 53 18.5
25 1" 50 86 59 23.5
32 1 1/4" 57 100 72 29
40 1 1/2" 61 120 86 35
50 2" 70 140 98 44
Product Description
Company Introduction
Production Process
Exhibition Show
Our Certification
Packaging & Shipping
FAQ * Q:Can I get a sample?

A:Yes! Please contact us for more details.
* Q:What's your payment term?
A:We often use T/T. Other payment like L/C,D/P are also available.
* Q:What's the lead time?
A:About 45 days. Different products need different time. Please contact us for more details.
* Q:What's your MOQ?
A:We are available for trial order. And different products have different MOQ, please contact us for more details.* Q:Can you offer OEM service? A:Yes! Of course. We have much experience of OEM service in this industry. Please tell us your requirements and we'll offer satisfied solution.
