Qizhi Hydraulic Three Roller Metal Plate Prebending and Rolling Machine

Product Description

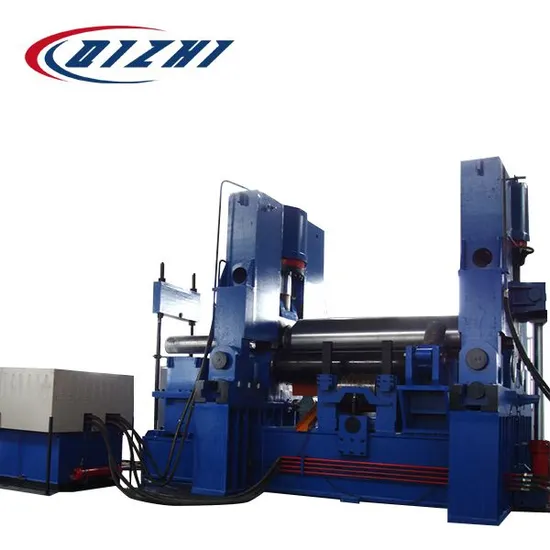

Hydraulic three-roller plate rolling machine
This machine is a fully automatic hydraulic three-roller plate rolling machine, which is used to roll the steel plate into a cylindrical shape or cone shape. High rolling accuracy, no need for auxiliary equipment, and low investment. Widely used in the petroleum, chemical, boiler, shipbuilding, hydropower, metal structure, and mechanical manufacturing industries. The upper roller can be vertically lifted and horizontally moved. When rolling, the motor and reducer drive the two lower rollers, and the upper roller can assist in driving. Due to the constant elevation of the lower roller, it is convenient for feeding and operation. PLC control. The hydraulic components used in the equipment are famous brand. The equipment has high reliability, and the tipping frame adopts hydraulic tipping. The equipment operates smoothly, with flexible control, no jamming, oil leakage, or abnormal noise.
Specifications

Model	Max. rolling thickness	Max. pre-rolling thickness	Plate width	Diameter of upper roller	Main motor power
	(mm)	(mm)	(mm)	(mm)	(kw)
W11SNC-12x2000	12	10	2000	250	5.5
W11SNC-16x2000	16	12	2000	255	7.5
W11SNC-16x2500	16	12	2500	300	15
W11SNC-18x3000	18	14	3000	350	15
W11SNC-20x3000	20	16	3000	375	18.5
W11SNC-25x2500	25	20	2500	380	22
W11SNC-30x2500	30	25	2500	410	30
W11SNC-30x3000	30	25	3000	450	37
W11SNC-32x3000	32	28	3000	480	37
W11SNC-35x2500	35	30	2500	460	37
W11SNC-35x3000	35	30	3000	510	45
W11SNC-40x2500	40	35	2500	500	45
W11SNC-40x3000	40	35	3000	540	55
W11SNC-40x4000	40	32	4000	610	55
W11SNC-45x3000	45	40	3000	590	55
W11SNC-45x4000	45	40	4000	660	55

This machine can be customized based on user's requirements. Pressure Vessel Fabrication

---
