Basic Info.
Making Method of Parison
Extrusion-Blow Molding
Certification
CE, ISO9001:2008
After-sales Service
1 Year
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Die Head Heating Power(Kw)
8.5 Kw
Key Selling Points
High Safety Level
Blow Moulding Type
Extrusion Blow Moulding
Key Words
Extrusion Blowing Molding Machine
Machinery Test Report
Provided
Showroom Location
Egypt, Turkey, United Kingdom, United States, Fran
Screw Diameter (mm)
50 mm
Air Pressure(MPa)
0.8 MPa
Video Outgoing-Inspection
Provided
Application
Bottle, Jar, Jerrycan, etc.
Plastic Processed
HDPE, Pet, PE
Transport Package
Fixed in The Container with Wire Rope, Suitable Fo
Specification
CE standard
Production Capacity
5000sets/Year
Product Description
Products Description

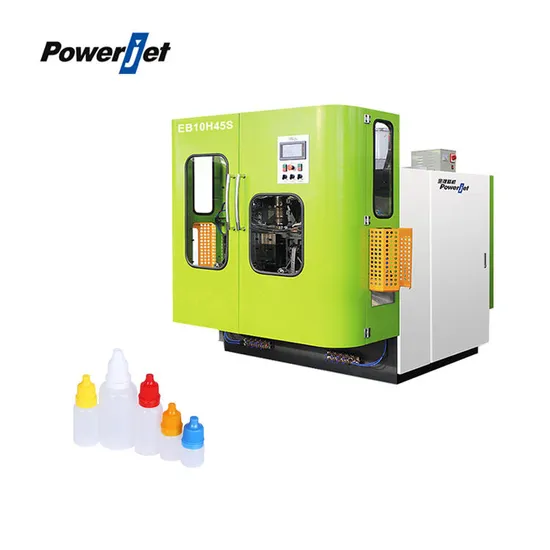

H SERIES HIGH-SPEED DOUBLE STATION EXTRUSION BLOW MOLDING MACHINE EB10H
Powerjet Double Station Extrusion Blow Molding Machine EB10H is specialized for
manufacturing bottles and containers which under 1L.
Max Bottle Capacity - 1(L)
Clamping Force - 27(KN)
Extrusion Weight(HDPE) - 30(kg/hr)
Applications - Wide Range Of Bottles For Daily necessities, toiletries, beverages, water tanks, laundry detergent/shower gel/motor
oil bottles, etc
Product Paramenters
| MODEL | UNIT | EB10H40S | EB10H45S | EB10H50S |
| Max.Product | L | 1 | 1 | 1 |
| Clamping Force | kN | 27/38 | 27/38 | 27/38 |
| Max.Mold Size(WxH) | mm | 290x220 |
| Screw Diameter | mm | Φ40 | Φ45 | Φ50 |
| Screw L/D Ratio | L/D | 24 | 24 | 23 |
| Screw Rotary Speed | RPM | 75 | 75 | 75 |
| Extrusion Weight(HDPE) | kg | 20 | 25 | 30 |
| Extrusion Motor Power | kW | 5.5 | 7.5 | 11 |
| Pump Motor Power | kW | 5.5 | 5.5 | 5.5 |
| Heating Capacity | kW | 6.2 | 7.0 | 8.0 |
| Operation Pressure | Mpa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| Air Consumption | m³/min | 1.0 | 1.0 | 1.0 |
| Cooling Water Consumption(25ºC) | L/min | 13 | 13 | 13 |
| Machine Dimension (LxWxH) | mm | 2440x2000x2150 |
| Machine Weight | kg | 1600 | 1700 | 1800 |
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2:Do you offer guarantee for the products?
A2: Yes, we offer 1 years warranty to our products.
Q3: Where is your factory located?
A3:POWERJET PLASTIC MACHINERY co., LTD. the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong ProvinceWe are warmly welcome you to visit us.
>>
