Product Description
Product Description

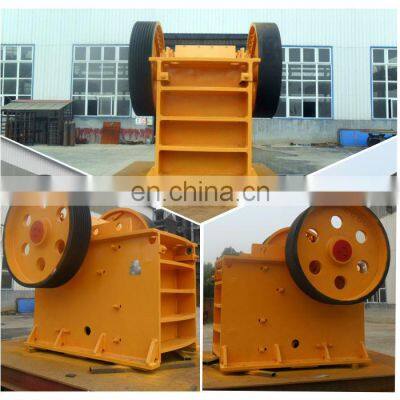

Products Description Sale High Rigidity Mining Machine Rock Stone Jaw Crusher with Factory PriceThe PE Series Jaw Crusher adopts anti-wear high manganese,light weight,high strength and rigidity and low energy consumption,be the most popular usage in the primary crushing.The PEX series jaw crusher can fully guarantee customers' crushing requirements from various industries.It's popular used in thesecondary crushing industry. mining stone jaw crusher / jaw crusher for sale / crusher machineWorking principleThis jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.Product ParamentersModelSize of FeedOpening(mm)Max FeedSize (mm)Discharge RangeOpening (mm)Capacity(t/h )Motor Power(kw)PE-150X250150X25012510-401-35.5PE-250×400250×40021020-605-2015PE-400×600400×60034040-10015-6030PE-500×750500×75042550-10040-10055PE-600×900600×90050065-18060-14075PE-750×1060750×106063080-18090-23090PE-900×1200900×120078095-225150-350110PE-1000×12001000×1200850195-280180-400132PE-1200×15001200×15001020150-300400-800160PEX-150×750150×75012018-485-1615PEX-250×750250×75021025-6010-4022PEX-250×1000250×100021025-6015-5037PEX-250×1200250×120021025-6020-6045PEX-300×1300300×130025020-9025-9555Manufacturing Technique1-The deep crushing cavity increases the feeding capacity and output capacity;2-High ratio of crushing, homogeneous final product size;3-Adjusting the discharge opening through gasket, more convenient, it can meet different customers' requirenment;4-Lubricate system is safe and reliable, easy to change the spare parts;5-Simple structure, easy maintenance, consumption cost is lower;6-Energy-saving, for one set saving about 15%-30%;7-Little noise and dust.Why Choose Uscompany introductionGongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.Products Description The jaw crusher machine consists of two jaw plates, the dynamic jaw and static jaw.The working part of the jaw crusher is two jaw plates, one is the fixed jaw plate (stationary jaw), the other is the mobile jaw plate (dynamic jaw), the position is inclined, with the fixed jaw plate forms the upper big lower small crushing cavity (working chamber).The movable jaw plate moves periodically to the stationary jaw plate, sometimes apart, sometimes close.When separated, the material enters the crushing chamber and the finished product is discharged from the lower part.When close, the material between two jaw plates is compressed, bent and split.Widely used in mine smelting, building materials, roads, railways, water conservancy and chemical industries and other industries of various ore and bulk material crushing.The maximum compressive strength of the crushed material is 320Mpa.CertificationsJaw crusher CE CertificationISO Quality System IdentificationMotor CE certificationRecommend ProductsHammer crusherImpact crusherCone crusher
>>
